We offer steel plates in sizes from 6×20 to 8×20 ft, in different gauges from 3/4 to 3″
Our steel plates meet the highest quality standards, ensuring strength, durability, and versatility in every use. Ideal for industrial, structural, and construction applications.
Plates are sold individually.
Special products require minimum order quantities.
Descripción Description | Ancho (ft) Width (ft) | Largo (ft) Length (ft) | Ancho (m) Width (m) | Largo (m) Length(m) | Inventario Stock | Calibre (nominal) Gauge (nominal) | Espesor Thickness | Kg / pza Kg / pc |
|---|---|---|---|---|---|---|---|---|
L 6x20 | 6 | 20 | 1.83 | 6.10 |
| 3/4" | 0.7500" | 1,667 |
| 7/8" | 0.8750" | 1,945 | |||||
| 1" | 1.0000" | 2,223 | |||||
| 1 1/4" | 1.2500" | 2,778 | |||||
| 1 1/2" | 1.5000" | 3,334 | |||||
| 1 3/4" | 1.7500" | 3,890 | |||||
| 2" | 2.0000" | 4,445 | |||||
| 2 1/4" | 2.2500" | 5,001 | |||||
| 2 1/2" | 2.5000" | 5,557 | |||||
| 3" | 3.0000" | 6,668 | |||||
L 6x40 | 6 | 40 | 1.83 | 12.19 |
| 3/4" | 0.7500" | 3,334 |
| 7/8" | 0.8750" | 3,890 | |||||
| 1" | 1.0000" | 4,445 | |||||
| 1 1/4" | 1.2500" | 5,557 | |||||
| 1 1/2" | 1.5000" | 6,668 | |||||
| 2" | 2.0000" | 8,891 | |||||
| 2 1/4" | 2.2500" | 10,002 | |||||
| 2 1/2" | 2.5000" | 11,113 | |||||
L 8x20 | 8 | 20 | 2.44 | 6.10 |
| 1/4" | 0.2500" | 741 |
| 5/16" | 0.3125" | 926 | |||||
| 3/8" | 0.3750" | 1,111 | |||||
| 1/2" | 0.5000" | 1,482 | |||||
| 5/8" | 0.6250" | 1,852 | |||||
| 3/4" | 0.7500" | 2,223 | |||||
| 7/8" | 0.8750" | 2,593 | |||||
| 1" | 1.0000" | 2,964 | |||||
| 1 1/4" | 1.2500" | 3,704 | |||||
| 1 1/2" | 1.5000" | 4,445 | |||||
| 2" | 2.0000" | 5,927 | |||||
| 2 1/4" | 2.2500" | 6,668 | |||||
| 2 1/2" | 2.5000" | 7,409 | |||||
| 3" | 3.0000" | 8,891 | |||||
L 8x40 | 8 | 40 | 2.44 | 12.19 |
| 1/4" | 0.2500" | 1,482 |
| 5/16" | 0.3125" | 1,852 | |||||
| 3/8" | 0.3750" | 2,223 | |||||
| 1/2" | 0.5000" | 2,964 | |||||
| 5/8" | 0.6250" | 3,704 | |||||
| 3/4" | 0.7500" | 4,445 | |||||
| 7/8" | 0.8750" | 4,445 | |||||
| 1" | 1.0000" | 5,927 | |||||
| 1 1/4" | 1.2500" | 7,409 | |||||
| 1 1/2" | 1.5000" | 8,891 | |||||
| 2" | 2.0000" | 11,854 | |||||
| 2 1/4" | 2.2500" | 13,336 | |||||
| 2 1/2" | 2.5000" | 14,818 |
| A36 |
| A572-50 |
We offer anti-slip steel sheets in a standard 4×10 ft size, in gauges from 14 to 1/4”. Available in bundles of 30, 20, or 15 sheets.
Designed to provide safety on surfaces where extra traction is needed.
Descripción Description | Ancho (ft) Width (ft) | Largo (ft) Length (ft) | Ancho (m) Width (m) | Largo (m) Length(m) | Inventario Stock | Calibre (nominal) Gauge (nominal) | Espesor Thickness | Kg / pza Kg / pc | Piezas x paquete Pieces / bundle | Kg x paquete Kg / bundle |
|---|---|---|---|---|---|---|---|---|---|---|
L 3x8 | 3 | 8 | 0.91 | 2.44 | * | 14 | 0.0747" | 33.21 | 30 | 996 |
L 3x10 | 3 | 10 | 0.91 | 3.05 |
| 14 | 0.0747" | 41.51 | 40 | 1,660 |
L 4x8 | 4 | 8 | 1.22 | 2.44 |
| 14 | 0.0747" | 44.27 | 40 | 1,171 |
* | 12 | 0.1046" | 62.00 | 20 | 1,240 | |||||
* | 1/8" | 0.1250" | 74.09 | 20 | 1,482 | |||||
* | 3/16" | 0.1875" | 111.13 | 20 | 2,223 | |||||
* | 1/4" | 0.2500" | 148.18 | 30 | 4,445 | |||||
L 4x10 | 4 | 10 | 1.22 | 3.05 |
| 14 | 0.0747" | 55.34 | 30 | 1,660 |
| 12 | 0.1046" | 77.50 | 20 | 1,550 | |||||
| 1/8" | 0.1250" | 92.61 | 20 | 1,852 | |||||
| 3/16" | 0.1875" | 138.92 | 15 | 2,084 | |||||
| 1/4" | 0.2500" | 185.16 | 15 | 2,778 |
| Hot Rolled |

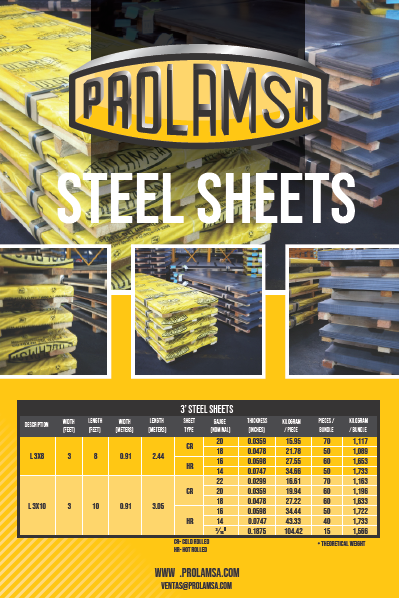

We offer steel sheets in sizes from 3×10 to 6×20 ft, in different gauges from 24 to 3/4″
Our steel sheets are ideal for a wide range of industrial and commercial applications, providing strength and durability.
For special sizes contact your sales representative.
Descripción Description | Ancho (ft) Width (ft) | Largo (ft) Length (ft) | Ancho (m) Width (m) | Largo (m) Length(m) | Inventario Stock | Calibre (nominal) Gauge (nominal) | Espesor Thickness | Kg / pza Kg / pc | Piezas x paquete Pieces / bundle | Kg x paquete Kg / bundle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L 3x8 | 3 | 8 | 0.91 | 2.44 | * | 24 | 0.0239" | 10.62 | 150 | 1,594 | |||||
* | 22 | 0.0299" | 13.29 | 110 | 1,462 | ||||||||||
| 20 | 0.0359" | 15.96 | 95 | 1,516 | ||||||||||
| 18 | 0.0478" | 21.25 | 75 | 1,594 | ||||||||||
| 16 | 0.0598" | 26.58 | 60 | 1,595 | ||||||||||
| 14 | 0.0747" | 33.21 | 50 | 1,660 | ||||||||||
* | 12 | 0.1046" | 46.50 | 21 | 976 | ||||||||||
* | 3/16" | 0.1875" | 83.35 | 21 | 1,750 | ||||||||||
* | 1/4" | 0.2500" | 111.13 | 20 | 2,223 | ||||||||||
L 3x10 | 3 | 10 | 0.91 | 3.05 |
| 24 | 0.0239" | 13.28 | 120 | 1,594 | |||||
| 22 | 0.0299" | 16.61 | 95 | 1,578 | ||||||||||
| 20 | 0.0359" | 19.95 | 80 | 1,596 | ||||||||||
| 18 | 0.0478" | 26.56 | 60 | 1,594 | ||||||||||
| 16 | 0.0598" | 33.23 | 50 | 1,661 | ||||||||||
| 14 | 0.0747" | 41.51 | 40 | 1,660 | ||||||||||
| 12 | 0.1046" | 58.12 | 30 | 1,744 | ||||||||||
| 3/16" | 0.1875" | 104.19 | 20 | 2,084 | ||||||||||
| 1/4 | 0.2500" | 138.92 | 15 | 2,084 | ||||||||||
L 4x8 | 4 | 8 | 1.22 | 2.44 | * | 22 | 0.0299" | 17.72 | 90 | 1,595 | |||||
| 20 | 0.0359" | 21.28 | 75 | 1,596 | ||||||||||
| 18 | 0.0478" | 28.33 | 55 | 1,558 | ||||||||||
| 16 | 0.0598" | 35.44 | 45 | 1,595 | ||||||||||
| 14 | 0.0747" | 44.27 | 35 | 1,550 | ||||||||||
* | 12 | 0.1046" | 62.00 | 25 | 1,550 | ||||||||||
* | 11 | 0.1196" | 70.89 | 22 | 1,1560 | ||||||||||
* | 10 | 0.1345" | 79.72 | 20 | 1,1594 | ||||||||||
* | 3/16" | 0.1875" | 111.13 | 18 | 2,000 | ||||||||||
* | 1/4" | 0.2500" | 148.18 | 12 | 1,778 | ||||||||||
* | 3/8" | 0.3750" | 222.26 | 10 | 2,223 | ||||||||||
* | 1/2" | 0.5000" | 296.35 | 8 | 2,371 | ||||||||||
* | 3/4" | 0.7500" | 444.53 | 6 | 2,667 | ||||||||||
L 4x10 | 4 | 10 | 1.22 | 3.05 |
| 22 | 0.0299" | 22.15 | 70 | 1,551 | |||||
| 20 | 0.0359" | 26.60 | 60 | 1,596 | ||||||||||
| 18 | 0.0478" | 35.41 | 45 | 1,594 | ||||||||||
| 16 | 0.0598" | 44.30 | 35 | 1,551 | ||||||||||
| 14 | 0.0747" | 55.34 | 30 | 1,660 | ||||||||||
| 12 | 0.1046" | 77.50 | 20 | 1,550 | ||||||||||
| 11 | 0.1196" | 88.61 | 18 | 1,595 | ||||||||||
| 10 | 0.1345" | 99.65 | 16 | 1,594 | ||||||||||
| 3/16" | 0.1875" | 138.92 | 15 | 2,084 | ||||||||||
| 1/4" | 0.2500" | 185.22 | 12 | 2,223 | ||||||||||
| 3/8" | 0.3750" | 277.83 | 8 | 2,223 | ||||||||||
| 1/2" | 0.5000" | 370.44 | 6 | 2,223 | ||||||||||
| 3/4" | 0.7500" | 555.66 | 4 | 2,223 | ||||||||||
L 5x10 | 5 | 10 | 1.52 | 3.05 | * | 3/16" | 0.1875" | 173.64 | 6 | 1,042 | |||||
* | 1/4" | 0.2500" | 231.53 | 5 | 1,158 | ||||||||||
* | 3/8" | 0.3750" | 347.29 | 3 | 1,042 | ||||||||||
* | 1/2" | 0.5000" | 463.05 | 3 | 1,389 | ||||||||||
* | 3/4" | 0.7500" | 694.58 | 2 | 1,389 | ||||||||||
L 5x20 | 5 | 20 | 1.52 | 6.10 |
| 3/16" | 0.1875" | 347.29 | 6 | 2,084 | |||||
| 1/4" | 0.2500" | 463.05 | 5 | 2,315 | ||||||||||
| 5/16" | 0.3125" | 578.81 | 4 | 2,315 | ||||||||||
| 3/8" | 0.3750" | 694.58 | 3 | 2,084 | ||||||||||
| 1/2" | 0.5000" | 926.10 | 3 | 2,778 | ||||||||||
| 3/4" | 0.7500" | 1,389.15 | 2 | 2,778 | ||||||||||
L 6x10 | 6 | 10 | 1.83 | 3.05 | * | 3/16" | 0.1875" | 208.37 | 4 | 833 | |||||
* | 1/4" | 0.2500" | 277.83 | 4 | 1,111 | ||||||||||
* | 5/16" | 0.3125" | 347.29 | 3 | 1,042 | ||||||||||
* | 3/8" | 0.3750" | 416.75 | 3 | 1,250 | ||||||||||
* | 1/2" | 0.5000" | 555.66 | 2 | 1,111 | ||||||||||
* | 5/8" | 0.6250" | 694.58 | 2 | 1,389 | ||||||||||
* | 3/4" | 0.7500" | 833.49 | 2 | 1,667 | ||||||||||
L 6x20 | 6 | 20 | 1.83 | 6.10 |
| 3/16" | 0.1875" | 416.75 | 5 | 2,084 | |||||
| 1/4" | 0.2500" | 555.66 | 4 | 2,223 | ||||||||||
| 5/16" | 0.3125" | 694.58 | 3 | 2,084 | ||||||||||
| 3/8" | 0.3750" | 833.49 | 3 | 2,500 | ||||||||||
| 1/2" | 0.5000" | 1,111.32 | 2 | 2,223 | ||||||||||
| 5/8" | 0.6250" | 1,389.15 | 2 | 2,778 | ||||||||||
| 3/4" | 0.7500" | 1,666.98 | 2 | 3,334 |
| Cold Rolled |
| Hot Rolled |
| HSLA |
* | Made to order |
Oval tubes are generally used in greenhouses and manufacturing
Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.
Description | A | B | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|---|
30mm x 15mm | 30.00mm | 15.00mm | 20 | 0.0359" | * | 6.00 | 100 | 0.53 |
14 | 0.0747" | * | 6.00 | 100 | 1.15 | |||
1.125" x 0.625" | 28.58mm | 15.88mm | 20 | 0.0359" | * | 6.03 | 186 | 0.55 |
14 | 0.0747" | * | 6.03 | 100 | 1.19 | |||
1.610" x 0.600" | 40.90mm | 15.34mm | 20 | 0.0359" | * | 6.00 | 250 | 0.72 |
14 | 0.0747" | * | 6.00 | 250 | 1.43 | |||
65mm x 35mm | 65.00mm | 35.00mm | 16 | 0.0598" | * | 6.33 | 50 | 2.07 |
70mm x 42mm | 70.00mm | 42.00mm | 20 | 0.0359" | * | 6.00 | 50 | 1.37 |
12 | 0.1046" | * | 6.00 | 50 | 4.01 | |||
74mm x 10mm | 74.00mm | 10.00mm | 16 | 0.0598" | * | 6.03 | 186 | 1.92 |
* | Made to order |
Elliptical tubing has great applications in the furniture and light structure industries.
Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.
Description | A | B | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|---|
25mm x 16mm | 25.40 | 15.88 | 16 | 0.0598" | * | 6.00 | 100 | 0.61 |
14 | 0.0747" | * | 6.00 | 100 | 0.77 | |||
30mm x 15mm | 29.85 | 15.24 | 16 | 0.0598" | * | 6.00 | 100 | 0.88 |
14 | 0.0747" | * | 6.00 | 100 | 1.02 | |||
64mm x 34mm | 64.00 | 34.00 | 16 | 0.0598" | * | 6.00 | 100 | 1.97 |
14 | 0.0747" | * | 6.00 | 100 | 2.47 |
* | Made to order |
In staves we offer two different lengths and widths
Made to order products subject to minimum orders
Available in cold rolled steel with red primer and galvanized with green primer
Description | Gauge | Stock | Thickness | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|
170 | 20 |
| 0.0359" | 6.00 | 60 | 1.54 |
171 | 20 |
| 0.0359" | 6.00 | 120 | 0.86 |
| Red paint |
| Green galvanized |
* | Made to order |
Deck 149 is also called “small box” deck as its square die cut is 3/8 ” wide
Bundles include 50 pieces each.
Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.
Description | Width | Length | Gauge | Thickness | Stock | Width (m) | Length m.(m) | Kg / m |
|---|---|---|---|---|---|---|---|---|
149-LC | 3' | 3' | 20 | 0.0359" | * | 0.81 | 0.91 | 6.53 |
3' | 6.4' | 20 | 0.0359" |
| 0.81 | 1.95 | 6.53 | |
3' | 8' | 20 | 0.0359" |
| 0.81 | 2.44 | 6.53 | |
3' | 10' | 20 | 0.0359" |
| 0.81 | 3.05 | 6.53 |
| Red paint |
* | Made to order |
A-Moulding on width
L-Moulding on length
LC- Moulding on length (Continuous)
Deck 148 is also known as “big box” deck because of its square shaped die cut, which is 3/4 ” wide
Bundles include 50 pieces each.
Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.
Descripción Description | Ancho Width | Largo Length | Calibre Gauge | Espesor Thickness | Inventario Stock | Ancho (m) Width (m) | Largo (m) Length m.(m) | Kg / m |
|---|---|---|---|---|---|---|---|---|
148-LC | 3' | 10' | 22' | 0.0299 | * | 0.76 | 3.05 | 5.45 |
148-LC | 4' | 6' | 22 | 0.0299 |
| 1.02 | 1.83 | 7.25 |
4' | 6.5' | 22 | 0.0299 |
| 1.02 | 1.98 | 7.25 | |
4' | 8' | 20 | 0.0359 | * | 1.02 | 2.44 | 8.73 | |
22 | 0.0299 |
| 1.02 | 2.44 | 7.25 |
| Green galvanized |
* | Made to order |
LC- Moldura Largo (Continuo)
Deck 147 is also known as “Diamond Point” due to the “v” shape of its die cut
Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.
Description | Width | Length | Gauge | Thickness | Stock | Width (m) | Length (m) | Kg / m |
|---|---|---|---|---|---|---|---|---|
147-L | 3' | 3' | 20 | 0.0359" | * | 0.89 | 0.91 | 6.53 |
3' | 6.4' | 20 | 0.0359" | * | 0.89 | 1.95 | 6.53 | |
3' | 8' | 20 | 0.0359" | * | 0.89 | 2.44 | 6.53 | |
3' | 10' | 20 | 0.0359" | * | 0.89 | 3.05 | 6.53 | |
3' | 6' | 20 | 0.0359" | * | 0.89 | 1.83 | 6.53 | |
147-LC | 3' | 6' | 22 | 0.0299" | * | 0.89 | 1.83 | 5.45 |
3' | 8' | 22 | 0.0299" | * | 0.89 | 2.44 | 5.45 | |
3' | 10' | 22 | 0.0299" | * | 0.89 | 3.05 | 5.45 |
* | Made to order |
A-Moulding on width
L-Moulding on length
LC- Moulding on length (Continuous)
Our steel shapes (profiles) are available on steel gauges 20 to 14.
Shape | Description | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
| 1400 | 18 | 0.0478" |
| 6.00 | 72 | 1.24 |
| 1500 | 16 | 0.0598" |
| 6.00 | 30 | 2.45 |
14 | 0.0747" |
| 6.00 | 32 | 3.06 | ||
| 160 | 20 | 0.0359" | * | 6.00 | 90 | 1.08 |
18 | 0.0478" |
| 6.00 | 90 | 1.47 |
| Natural galvanized |
| Red paint |
| Green galvanized |
* | Made to order |
Our steel shapes (profiles) are available on steel gauges 20 to 14.
Shape | Description | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
| M-221 | 20 | 0.0359" | * | 6.00 | 72 | 1.46 |
| M-225 | 20 | 0.0359" |
| 5.50 | 96 | 1.03 |
18 | 0.0478" |
| 5.50 | 96 | 1.41 | ||
| M-300 | 20 | 0.0359" |
| 5.50 | 96 | 1.17 |
| M-525 | 20 | 0.0359" |
| 5.50 | 42 | 1.56 |
| M-600 | 20 | 0.0359" |
| 5.50 | 42 | 1.69 |
| Red paint |
| Green galvanized |
* | Made to order |
We offer special shapes to assemble steel doors.
Shape | Description | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
| 154 | 18 | 0.0478" |
| 6.00 | 450 | 0.25 |
| M-221 | 20 | 0.0359" | * | 6.00 | 72 | 1.46 |
| M-225 | 20 | 0.0359" |
| 5.50 | 96 | 1.03 |
18 | 0.0478" |
| 5.50 | 96 | 1.41 | ||
| M-300 | 20 | 0.0359" |
| 5.50 | 96 | 1.17 |
| M-525 | 20 | 0.0359" |
| 5.50 | 42 | 1.56 |
| M-600 | 20 | 0.0359" |
| 5.50 | 42 | 1.69 |
| 126 | 20 | 0.0359" |
| 6.00 | 48 | 1.27 |
18 | 0.0478" |
| 6.00 | 48 | 1.72 | ||
| P-100 | 20 | 0.0359" |
| 6.00 | 96 | 1.01 |
18 | 0.0478" |
| 6.00 | 96 | 1.36 | ||
| P-150 | 20 | 0.0359" |
| 6.00 | 70 | 1.19 |
18 | 0.0478" |
| 6.00 | 70 | 1.61 | ||
| P-200 | 20 | 0.0359" |
| 6.00 | 72 | 1.37 |
18 | 0.0478" |
| 6.00 | 72 | 1.86 | ||
| P-250 | 20 | 0.0359" |
| 6.00 | 42 | 1.56 |
18 | 0.0478" |
| 6.00 | 42 | 2.09 | ||
| P-300 | 20 | 0.0359" |
| 6.00 | 54 | 1.73 |
18 | 0.0478" |
| 6.00 | 54 | 2.32 | ||
| P-400 | 20 | 0.0359" |
| 6.00 | 48 | 2.09 |
18 | 0.0478" |
| 6.00 | 48 | 2.82 | ||
| K-100 | 18 | 0.0478" | * | 6.00 | 96 | 1.58 |
| K-150 | 20 | 0.0359" | * | 6.00 | 54 | 1.34 |
18 | 0.0478" |
| 6.00 | 54 | 1.83 | ||
| K-200 | 20 | 0.0359" | * | 6.00 | 48 | 1.52 |
| K-300 | 20 | 0.0359" |
| 6.00 | 45 | 1.88 |
18 | 0.0478" |
| 6.00 | 45 | 2.57 |
| Natural galvanized |
| Red paint |
| Green galvanized |
* | Made to order |
We offer special shapes to assemble steel windows.
Shape | Description | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
| 101 | 20 | 0.0359" |
| 6.00 | 100 | 0.91 |
18 | 0.0478" |
| 6.00 | 100 | 1.22 | ||
| 103 | 20 | 0.0359" |
| 6.00 | 80 | 1.08 |
18 | 0.0478" |
| 6.00 | 80 | 1.47 | ||
| 106 | 20 | 0.0359" | * | 6.00 | 80 | 1.08 |
18 | 0.0478" |
| 6.00 | 80 | 1.47 | ||
| 121 | 20 | 0.0359" |
| 6.00 | 96 | 1.00 |
18 | 0.0478" | * | 6.00 | 96 | 1.36 | ||
| 122 | 20 | 0.0359" |
| 6.00 | 80 | 1.00 |
18 | 0.0478" | * | 6.00 | 80 | 1.36 | ||
| 123 | 20 | 0.0359" |
| 6.00 | 80 | 1.07 |
| 124 | 18 | 0.0478" |
| 6.00 | 100 | 0.68 |
| 127 | 18 | 0.0478" |
| 6.00 | 60 | 1.91 |
| 131 | 20 | 0.0359" |
| 6.00 6.00 | 160 | 0.64 |
| 159 | 18 | 0.0478" |
| 6.00 | 54 | 1.81 |
| Red paint |
| Green galvanized |
* | Made to order |
Fence tubing is generally made of galvanized steel and is used in perimeter fences.
Made to order products are subject to minimum orders.
ASTM and A513 Standard.
External diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|
1.000" | 18 | 0.0478" | * | 6.00 | 137 | 0.72 |
16 | 0.0598" | * | 6.00 | 127 | 0.89 | |
1.315" | 20 | 0.0359" | * | 6.00 | 102 | 0.73 |
18 | 0.0478" | * | 6.00 | 91 | 0.96 | |
1.500" | 20 | 0.0359" |
| 6.00 | 95 | 0.84 |
18 | 0.0478" |
| 6.00 | 95 | 1.10 | |
1.660" | 20 | 0.0359" | * | 6.00 | 127 | 0.93 |
18 | 0.0478" | * | 6.10 | 127 | 1.22 | |
1.900" | 20 | 0.0359" |
| 6.00 | 67 | 1.06 |
18 | 0.0478" |
| 6.00 | 67 | 1.41 | |
16 | 0.0598" | * | 6.00 | 61 | 1.75 | |
14 | 0.0747" | * | 6.00 | 61 | 2.17 | |
2.375" | 18 | 0.0478" |
| 6.00 | 60 | 1.77 |
16 | 0.0598" | * | 6.00 | 37 | 2.20 | |
14 | 0.0747" | * | 6.00 | 37 | 2.73 | |
2.875" | 18 | 0.0478" | * | 6.00 | 39 | 2.15 |
16 | 0.0598" | * | 6.10 | 37 | 2.68 | |
14 | 0.0747" | * | 6.00 | 37 | 3.32 |
| Natural galvanized |
* | Made to order |
Schedule X tubing is used for structural applications
Made to order products are subject to minimum orders.
ASTM A513 Standard.
Nominal diameter | External diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
3" | 3 1/2" | 3/16" | 0.1875" | * | 6.40 | 19 | 9.87 |
4" | 4 1/2" | 3/16" | 0.1875" | * | 6.40 | 19 | 12.85 |
6" | 6 5/8" | 3/16" | 0.1875" | * | 6.40 | 7 | 19.18 |
2 1/2" | 2 7/8" | 9 | 0.1495" | * | 6.40 | 37 | 6.48 |
2" | 2 3/8" | 10 | 0.1345" |
| 6.40 | 37 | 4.79 |
| Natural |
* | Made to order |
Schedule 80 tubing is used for structural applications
Made to order products are subject to minimum orders.
ASTM A513 Standard.
Nominal diameter | External diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
2" | 2 3/8" | 0.216" | 0.2160" | * | 6.40 | 37 | 7.41 |
2 1/2" | 2 7/8" | 1/4" | 0.2500" | * | 6.40 | 37 | 10.43 |
3" | 3 1/2" | 5/16" | 0.3125" | * | 6.40 | 19 | 15.83 |
4" | 4 1/2" | 5/16" | 0.3125" | * | 6.40 | 19 | 20.80 |
* | Made to order |
Schedule 40 tubing is used for structural applications
Made to order products are subject to minimum orders.
ASTM A513 Standard.
Nominal diameter | External diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
1/4" | 0.540" | 14 | 0.0747" | * | 6.40 | 169 | 0.55 |
3/8" | 0.675" | 13 | 0.0897" | * | 6.40 | 169 | 0.83 |
1/2" | 0.840" | 12 | 0.1046" |
| 6.40 | 91 | 1.22 |
3/4" | 1.050" | 12 | 0.1046" |
| 6.40 | 91 | 1.57 |
1" | 1.315" | 10 | 0.1345" |
| 6.40 | 61 | 2.52 |
1 1/4" | 1.660" | 10 | 0.1345" |
| 6.40 | 37 | 3.26 |
1 1/2" | 1.900" | 10 | 0.1345" |
| 6.40 | 37 | 3.77 |
2" | 2 3/8" | 9 | 0.1495" |
| 6.00 | 37 | 5.29 |
2 1/2" | 2 7/8" | 0.203" | 0.2030" |
| 6.40 | 37 | 8.62 |
3" | 3 1/2" | 4 | 0.2242" |
| 6.00 / 6.40 | 19 | 11.67 |
4" | 4 1/2" | 4 | 0.2242" |
| 6.40 | 19 | 15.24 |
6" | 6 5/8" | 0.280" | 0.2800" |
| 6.40 | 7 | 28.24 |
| Natural |
* | Made to order |
Schedule 30 tubing is used for structural applications
Made to order products are subject to minimum orders.
ASTM A513 Standard.
Nominal diameter | External diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
1/2" | 0.840" | 14 | 0.0747" |
| 6.10 | 169 | 0.91 |
3/4" | 1.050" | 14 | 0.0747" |
| 6.10 | 127 | 1.16 |
1" | 1.315" | 14 | 0.0747" |
| 6.10 | 91 | 1.47 |
1 1/4" | 1.660" | 13 | 0.0897" |
| 6.10 | 61 | 2.24 |
1 1/2" | 1.900" | 13 | 0.0897" |
| 6.10 | 61 | 2.58 |
2" | 2 3/8" | 12 | 0.1046" |
| 6.10 | 37 | 3.77 |
2 1/2" | 2 7/8" | 12 | 0.1046" |
| 6.10 | 37 | 4.61 |
3" | 3 1/2" | 11 | 0.1196" |
| 6.10 | 19 | 6.43 |
4" | 4 1/2" | 11 | 0.1196" |
| 6.10 | 19 | 8.33 |
6" | 6 5/8" | 3/16" | 0.1880" |
| 6.10 | 7 | 19.23 |
| Natural |
* | Made to order |
Our round tubes come in an array of diameters and thicknesses:
Made to order products subject to minimum orders.
Available in cold rolled steel with red primer and galvanized with green primer.
ASTM A500 & A513 Standard.
Ask your sales representative for different lengths, thickness and coatings.
Description | Diameter | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
1/2" | 0.500" | 22 | 0.0299" |
| 6.00 | 228 | 0.22 |
20 | 0.0359" |
| 6.03 | 228 | 0.26 | ||
18 | 0.0478" |
| 6.03 | 228 | 0.34 | ||
5/8" | 0.625" | 22 | 0.0299" | * | 6.03 | 216 | 0.28 |
20 | 0.0359" |
| 6.03 | 216 | 0.34 | ||
18 | 0.0478" |
| 6.03 | 228 | 0.44 | ||
0.675" | 14 | 0.0747" | * | 6.40 | 217 | 0.71 | |
3/4" | 0.750" | 22 | 0.0299" | * | 6.03 | 186 | 0.34 |
20 | 0.0359" |
| 6.03 | 186 | 0.41 | ||
18 | 0.0478" |
| 6.03 | 186 | 0.53 | ||
16 | 0.0598" | * | 6.03 | 169 | 0.66 | ||
0.840" | 13 | 0.0897" | * | 6.40 | 91 | 1.07 | |
7/8" | 0.875" | 20 | 0.0359" |
| 6.03 | 180 | 0.48 |
18 | 0.0478" |
| 6.03 | 150 | 0.63 | ||
14 | 0.0747" | * | 6.03 | 169 | 0.95 | ||
1" | 1.000" | 20 | 0.0359" |
| 6.03 | 137 | 0.55 |
18 | 0.0478" |
| 6.03 | 137 | 0.72 | ||
16 | 0.0598" |
| 6.03 | 127 | 0.89 | ||
1.125" | 18 | 0.0478" | * | 6.03 | 175 | 0.82 | |
14 | 0.0747" | * | 6.03 | 186 | 1.25 | ||
1 1/4" | 1.250" | 20 | 0.0359" |
| 6.03 | 124 | 0.69 |
18 | 0.0478" |
| 6.03 | 124 | 0.91 | ||
16 | 0.0598" |
| 6.03 | 127 | 1.13 | ||
14 | 0.0747" | * | 6.03 | 127 | 1.40 | ||
1.315" | 20 | 0.0359" | * | 6.03 | 102 | 0.73 | |
18 | 0.0478" | * | 6.03 | 102 | 0.96 | ||
16 | 0.0598" | * | 6.03 | 91 | 1.19 | ||
12 | 0.1046" | * | 6.03 | 61 | 2.01 | ||
1 1/2" | 1.500" | 20 | 0.0359" |
| 6.03 | 95 | 0.84 |
18 | 0.0478" |
| 6.03 | 95 | 1.10 | ||
16 | 0.0598" |
| 6.03 | 91 | 1.37 | ||
14 | 0.0747" | * | 6.03 | 91 | 1.69 | ||
1 3/4" | 1.750" | 20 | 0.0359" | * | 6.03 | 69 | 0.98 |
18 | 0.0478" |
| 6.03 | 69 | 1.29 | ||
16 | 0.0598" |
| 6.03 | 91 | 1.61 | ||
14 | 0.0747" | * | 6.03 | 61 | 1.99 | ||
1 7/8" | 1.875" | 20 | 0.0359" | * | 6.03 | 95 | 1.05 |
12 | 0.1046" | * | 6.03 | 50 | 2.94 | ||
2" | 2.000" | 20 | 0.0359" | * | 6.03 | 67 | 1.12 |
18 | 0.0478" |
| 6.03 | 67 | 1.48 | ||
16 | 0.0598" |
| 6.03 | 61 | 1.84 | ||
14 | 0.0747" | * | 6.03 | 61 | 2.29 | ||
2 1/8" | 2.125" | 14 | 0.0747" | * | 6.03 | 61 | 2.43 |
2 1/4" | 2.250" | 18 | 0.0478" | * | 6.03 | 60 | 1.67 |
16 | 0.0598" |
| 6.03 | 61 | 2.08 | ||
14 | 0.0747" | * | 6.03 | 61 | 2.58 | ||
2 1/2" | 2.500" | 18 | 0.0478" |
| 6.03 | 60 | 1.86 |
16 | 0.0598" |
| 6.03 | 60 | 2.32 | ||
14 | 0.0747" | * | 6.03 | 61 | 2.88 | ||
2 3/4" | 2.750" | 11 | 0.1196" | * | 6.03 | 30 | 5.00 |
3" | 3.000" | 18 | 0.0478" |
| 6.03 | 39 | 2.24 |
16 | 0.0598" |
| 6.03 | 39 | 2.79 | ||
14 | 0.0747" | * | 6.03 | 37 | 3.47 | ||
3 1/2" | 3.500" | 13 | 0.0897" | * | 6.03 | 19 | 4.86 |
1/4" | 0.2500" | * | 6.03 | 19 | 12.91 | ||
4 1/2" | 4.500" | 1/4" | 0.2500" | * | 6.03 | 19 | 16.89 |
| Natural |
| Natural galvanized |
* | Made to order |
We manufacture rectangular HSS in large dimensions and thicknesses.
Rectangular HSS gets its name from the acronym “Hollow Structural Section”
Generally, rectangular HSS is the large steel pipe used in construction.
Description | Size | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
R-200 | 2.00"x 1.00" | 20 | 0.0359" |
| 6.00 | 50 | 1.06 |
18 | 0.0478" |
| 6.00 | 50 | 1.40 | ||
16 | 0.0598" |
| 6.00 | 50 | 1.74 | ||
14 | 0.0747" |
| 6.00 | 50 | 2.15 | ||
12 | 0.1046" | * | 6.00 | 50 | 2.95 | ||
11 | 0.1196" | * | 6.00 | 50 | 3.15 | ||
R-225 | 2.25"x 0.75" | 20 | 0.0359" |
| 6.00 | 55 | 1.06 |
18 | 0.0478" |
| 6.00 | 55 | 1.40 | ||
R-249 | 2.50"x 1.25" | 20 | 0.0359" |
| 6.00 | 54 | 1.34 |
18 | 0.0478" |
| 6.00 | 54 | 1.77 | ||
16 | 0.0598" | * | 6.00 | 54 | 2.20 | ||
14 | 0.0747" | * | 6.00 | 54 | 2.72 | ||
12 | 0.1046" | * | 6.00 | 54 | 3.75 | ||
R-250 | 2.50"x 1.50" | 18 | 0.0478" | * | 6.00 | 48 | 1.89 |
14 | 0.0747" |
| 6.00 | 48 | 2.91 | ||
12 | 0.1046" | * | 6.00 | 40 | 4.01 | ||
11 | 0.1196" | * | 6.00 | 40 | 4.36 | ||
R-275 | 2.75"x 1.00" | 12 | 0.1046" | * | 6.00 | 40 | 3.75 |
11 | 0.1196" | * | 6.00 | 40 | 4.06 | ||
R-375 | 3.00"x 0.75" | 14 | 0.0747" | * | 6.00 | 48 | 2.72 |
R-301 | 3.00"x 1.00" | 18 | 0.0478" | * | 6.00 | 48 | 1.89 |
16 | 0.0598" | * | 6.00 | 48 | 2.35 | ||
14 | 0.0747" | * | 6.00 | 48 | 2.91 | ||
11 | 0.1196" | * | 6.00 | 48 | 4.36 | ||
10 | 0.1345" | * | 6.00 | 48 | 4.84 | ||
R-300 | 3.00"x 1.50" | 22 | 0.0299" |
| 6.00 | 49 | 1.34 |
20 | 0.0359" |
| 6.00 | 49 | 1.61 | ||
18 | 0.0478" |
| 6.00 | 49 | 2.13 | ||
16 | 0.0598" | * | 6.00 | 49 | 2.65 | ||
14 | 0.0747" |
| 6.00 | 49 | 3.29 | ||
R-302 | 3.00"x 2.00" | 16 | 0.0598" | * | 6.00 | 28 | 2.95 |
14 | 0.0747" |
| 6.00 | 35 | 3.67 | ||
12 | 0.1046" | * | 6.00 | 28 | 5.07 | ||
11 | 0.1196" |
| 6.00 | 28 | 5.57 | ||
10 | 0.1345" |
| 6.00 | 28 | 6.20 | ||
9 | 0.1495" | * | 6.00 | 28 | 6.82 | ||
3/16 | 0.1880" |
| 6.10 | 28 | 8.34 | ||
1/4 | 0.2500" | * | 6.10 | 28 | 10.57 | ||
R-400 | 4.00"x 1.50" | 20 | 0.0359" |
| 6.00 | 35 | 1.97 |
18 | 0.0478" |
| 6.00 | 35 | 2.61 | ||
16 | 0.0598" | * | 6.00 | 35 | 3.26 | ||
14 | 0.0747" |
| 6.00 | 35 | 4.04 | ||
R-402 | 4.00"x 2.00" | 14 | 0.0747" |
| 6.00 | 35 | 4.42 |
11 | 0.1196" |
| 6.00 | 20 | 6.78 | ||
10 | 0.1345" | * | 6.00 | 20 | 7.56 | ||
9 | 0.1495" |
| 6.00 | 20 | 8.33 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 20 | 10.24 | ||
1/4 | 0.2500" | * | 6.10 | 15 | 13.10 | ||
R-403 | 4.00"x 3.00" | 14 | 0.0747" |
| 6.00 | 20 | 5.18 |
11 | 0.1196" |
| 6.00 | 15 | 7.99 | ||
9 | 0.1495" |
| 6.00 | 15 | 9.85 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 15 | 12.14 | ||
1/4 | 0.2500" |
| 6.10 | 15 | 15.63 | ||
R-502 | 5.00"x 2.00" | 11 | 0.1196" | * | 6.00 | 20 | 7.99 |
3/16 | 0.1880" | * | 6.10 | 20 | 12.14 | ||
1/4 | 0.2500" | * | 6.10 | 20 | 15.63 | ||
R-503 | 5.00"x 3.00" | 11 | 0.1196" | * | 6.00 | 16 | 9.21 |
10 | 0.1345" | * | 6.00 | 16 | 10.29 | ||
3/16 | 0.1880" | * | 6.10 | 16 | 14.03 | ||
1/4 | 0.2500" | * | 6.10 | 16 | 18.16 | ||
R-602 | 6.00"x 2.00" | 14 | 0.0747" |
| 6.10 | 24 | 5.93 |
11 | 0.1196" | * | 6.00 | 15 | 9.21 | ||
3/16 | 0.1880" | * | 6.10 | 15 | 14.03 | ||
1/4 | 0.2500" |
| 6.10 / 12.20 | 15 | 18.16 | ||
R-603 | 6.00"x 3.00" | 11 | 0.1196" | * | 6.00 | 16 | 10.42 |
3/16 | 0.1880" |
| 6.10 / 12.20 | 16 | 15.94 | ||
1/4 | 0.2500" |
| 6.10 / 12.20 | 16 | 20.69 | ||
R-604 | 6.00"x 4.00" | 11 | 0.1196" |
| 6.00 | 12 | 11.63 |
9 | 0.1495" | * | 6.10 | 12 | 14.38 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 12 | 17.85 | ||
1/4 | 0.2500" |
| 6.10 / 12.20 | 12 | 23.22 | ||
R-804 | 8.00"x 4.00" | 3/16 | 0.1880" | * | 12.20 | 9 | 21.65 |
1/4 | 0.2500" | * | 12.20 | 9 | 28.27 |
| Natural galvaized |
| Red paint |
| Natural |
| Green galvanized |
* | Made to order |
We offer rectangular tubing from 0.394 “x 0.591″, made of 0.0177 ” steel sheets.
Thin-walled Rectangular shapes generally have industrial and blacksmithing uses.
Regularly, rectangular profiles are made of thin cold rolled steel sheets.
Description | Size | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
R-100 | 1.00"x 0.50" | 20 | 0.0359" |
| 6.00 | 120 | 0.52 |
18 | 0.0478" |
| 6.00 | 120 | 0.68 | ||
16 | 0.0598" | * | 6.00 | 120 | 0.84 | ||
14 | 0.0747" | * | 6.00 | 120 | 1.02 | ||
R-125 | 1.25"x 0.75" | 20 | 0.0359" |
| 6.00 | 99 | 0.70 |
18 | 0.0478" |
| 6.00 | 99 | 0.92 | ||
16 | 0.0598" | * | 6.00 | 99 | 1.14 | ||
14 | 0.0747" | * | 6.00 | 99 | 1.40 | ||
R-155 | 1.50"x 0.50" | 20 | 0.0359" | * | 6.03 | 98 | 0.70 |
18 | 0.0478" |
| 6.03 | 98 | 0.92 | ||
16 | 0.0598" | * | 6.03 | 98 | 1.14 | ||
14 | 0.0747" | * | 6.03 | 98 | 1.40 | ||
R-150 | 1.50"x 0.75" | 16 | 0.0598" | * | 6.00 | 98 | 1.29 |
14 | 0.0747" | * | 6.00 | 98 | 1.59 | ||
11 | 0.1196" | * | 6.00 | 98 | 2.25 | ||
R-151 | 1.50"x 1.00" | 20 | 0.0359" | * | 6.00 | 84 | 0.88 |
18 | 0.0478" |
| 6.00 | 84 | 1.16 | ||
16 | 0.0598" | * | 6.00 | 100 | 1.44 | ||
14 | 0.0747" | * | 6.00 | 84 | 1.78 | ||
11 | 0.1196" | * | 6.00 | 63 | 2.55 | ||
R-175 | 1.75"x 0.75" | 20 | 0.0359" |
| 6.00 | 84 | 0.88 |
18 | 0.0478" |
| 6.00 | 84 | 1.16 | ||
R-200 | 2.00"x 1.00" | 20 | 0.0359" |
| 6.00 | 50 | 1.06 |
18 | 0.0478" |
| 6.00 | 50 | 1.40 | ||
16 | 0.0598" |
| 6.00 | 50 | 1.74 | ||
14 | 0.0747" |
| 6.00 | 50 | 2.15 | ||
12 | 0.1046" | * | 6.00 | 50 | 2.95 | ||
11 | 0.1196" | * | 6.00 | 50 | 3.15 | ||
R-225 | 2.25"x 0.75" | 20 | 0.0359" |
| 6.00 | 55 | 1.06 |
18 | 0.0478" |
| 6.00 | 55 | 1.40 | ||
R-249 | 2.50"x 1.25" | 20 | 0.0359" |
| 6.00 | 54 | 1.34 |
18 | 0.0478" |
| 6.00 | 54 | 1.77 | ||
16 | 0.0598" | * | 6.00 | 54 | 2.20 | ||
14 | 0.0747" | * | 6.00 | 54 | 2.72 | ||
12 | 0.1046" | * | 6.00 | 54 | 3.75 | ||
R-250 | 2.50"x 1.50" | 18 | 0.0478" | * | 6.00 | 48 | 1.89 |
14 | 0.0747" |
| 6.00 | 48 | 2.91 | ||
12 | 0.1046" | * | 6.00 | 40 | 4.01 | ||
11 | 0.1196" | * | 6.00 | 40 | 4.36 | ||
R-275 | 2.75"x 1.00" | 12 | 0.1046" | * | 6.00 | 40 | 3.75 |
11 | 0.1196" | * | 6.00 | 40 | 4.06 | ||
R-375 | 3.00"x 0.75" | 14 | 0.0747" | * | 6.00 | 48 | 2.72 |
R-301 | 3.00"x 1.00" | 18 | 0.0478" | * | 6.00 | 48 | 1.89 |
16 | 0.0598" | * | 6.00 | 48 | 2.35 | ||
14 | 0.0747" | * | 6.00 | 48 | 2.91 | ||
11 | 0.1196" | * | 6.00 | 48 | 4.36 | ||
10 | 0.1345" | * | 6.00 | 48 | 4.84 | ||
R-300 | 3.00"x 1.50" | 22 | 0.0299" |
| 6.00 | 49 | 1.34 |
20 | 0.0359" |
| 6.00 | 49 | 1.61 | ||
18 | 0.0478" |
| 6.00 | 49 | 2.13 | ||
16 | 0.0598" | * | 6.00 | 49 | 2.65 | ||
14 | 0.0747" |
| 6.00 | 49 | 3.29 | ||
R-302 | 3.00"x 2.00" | 16 | 0.0598" | * | 6.00 | 28 | 2.95 |
14 | 0.0747" |
| 6.00 | 35 | 3.67 | ||
12 | 0.1046" | * | 6.00 | 28 | 5.07 | ||
11 | 0.1196" |
| 6.00 | 28 | 5.57 | ||
10 | 0.1345" |
| 6.00 | 28 | 6.20 | ||
9 | 0.1495" | * | 6.00 | 28 | 6.82 | ||
3/16 | 0.1880" |
| 6.10 | 28 | 8.34 | ||
1/4 | 0.2500" | * | 6.10 | 28 | 10.57 | ||
R-400 | 4.00"x 1.50" | 20 | 0.0359" |
| 6.00 | 35 | 1.97 |
18 | 0.0478" |
| 6.00 | 35 | 2.61 | ||
16 | 0.0598" | * | 6.00 | 35 | 3.26 | ||
14 | 0.0747" |
| 6.00 | 35 | 4.04 | ||
R-402 | 4.00"x 2.00" | 14 | 0.0747" |
| 6.00 | 35 | 4.42 |
11 | 0.1196" |
| 6.00 | 20 | 6.78 | ||
10 | 0.1345" | * | 6.00 | 20 | 7.56 | ||
9 | 0.1495" |
| 6.00 | 20 | 8.33 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 20 | 10.24 | ||
1/4 | 0.2500" |
| 6.10 | 15 | 13.10 |
| Natural galvaized |
| Red paint |
| Natural |
| Green galvanized |
* | Made to order |
We offer square HSS of large dimensions and thicknesses.
HSS owes its name to the acronym “Hollow Structural Section”.
In general, large steel pipe, which has various uses in construction, is called square HSS.
Description | Size | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
C-500 | 5.000" | 3/16 | 0.1880" | * | 6.10 | 12 | 17.85 |
1/4 | 0.2500" | * | 6.10 | 12 | 23.22 | ||
C-600 | 6.000" | 3/16 | 0.1880" |
| 12.20 | 9 | 21.65 |
1/4 | 0.2500" |
| 12.20 | 9 | 28.27 |
| Natural |
* | Made to order |
We offer square HSS of large dimensions and thicknesses.
HSS owes its name to the acronym “Hollow Structural Section”.
In general, large steel pipe, which has various uses in construction, is called square HSS.
Description | Size | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
C-150 | 1.500" | 20 | 0.0359" |
| 6.00 | 49 | 1.06 |
18 | 0.0478" |
| 6.00 | 49 | 1.40 | ||
16 | 0.0598" |
| 6.00 | 49 | 1.74 | ||
14 | 0.0747" |
| 6.00 | 49 | 2.15 | ||
12 | 0.1046" |
| 6.00 | 49 | 2.95 | ||
11 | 0.1196" |
| 6.00 | 49 | 3.15 | ||
10 | 0.1345" |
| 6.00 | 49 | 3.48 | ||
9 | 0.1495" | * | 6.00 | 49 | 3.79 | ||
C-175 | 1.750" | 16 | 0.0598" | * | 6.00 | 60 | 2.05 |
14 | 0.0747" |
| 6.00 | 60 | 2.53 | ||
11 | 0.1196" | * | 6.00 | 60 | 3.76 | ||
C-200 | 2.000" | 20 | 0.0359" | * | 6.00 | 50 | 1.43 |
18 | 0.0478" |
| 6.00 | 50 | 1.89 | ||
16 | 0.0598" |
| 6.00 | 50 | 2.35 | ||
14 | 0.0747" |
| 6.00 | 50 | 2.91 | ||
12 | 0.1046" |
| 6.00 | 40 | 4.01 | ||
11 | 0.1196" |
| 6.00 | 40 | 4.36 | ||
10 | 0.1345" |
| 6.00 | 40 | 4.84 | ||
9 | 0.1495" |
| 6.10 | 40 | 5.31 | ||
3/16 | 0.1880" |
| 6.10 | 40 | 6.43 | ||
1/4 | 0.2500" |
| 6.10 | 40 | 8.04 | ||
C-225 | 2.250" | 16 | 0.0598" | * | 6.00 | 50 | 2.65 |
14 | 0.0747" | * | 6.00 | 50 | 3.29 | ||
C-250 | 2.500" | 16 | 0.0598" | * | 6.00 | 36 | 2.95 |
14 | 0.0747" |
| 6.00 | 36 | 3.67 | ||
12 | 0.1046" | * | 6.00 | 27 | 5.07 | ||
11 | 0.1196" |
| 6.00 | 27 | 5.57 | ||
10 | 0.1345" |
| 6.00 | 27 | 6.20 | ||
9 | 0.1495" | * | 6.00 | 27 | 6.82 | ||
3/16 | 0.1880" |
| 6.10 | 27 | 8.34 | ||
1/4 | 0.2500" | * | 6.10 | 27 | 10.57 | ||
C-300 | 3.000" | 14 | 0.0747" |
| 6.00 | 35 | 4.42 |
12 | 0.1046" | * | 6.00 | 21 | 6.13 | ||
11 | 0.1196" |
| 6.00 | 21 | 6.78 | ||
10 | 0.1345" | * | 6.00 | 21 | 7.56 | ||
9 | 0.1495" |
| 6.00 | 21 | 8.33 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 21 | 10.24 | ||
1/4 | 0.2500" |
| 6.10 | 21 | 13.10 | ||
C-350 | 3.500" | 14 | 0.0747" | * | 6.00 | 18 | 5.18 |
11 | 0.1196" |
| 6.00 | 18 | 7.99 | ||
9 | 0.1495" | * | 6.00 | 18 | 9.85 | ||
3/16 | 0.1880" |
| 6.10 | 18 | 12.14 | ||
1/4 | 0.2500" |
| 6.10 | 18 | 15.63 | ||
C-400 | 4.000" | 14 | 0.0747" |
| 6.00 | 20 | 5.93 |
11 | 0.1196" |
| 6.00 | 15 | 9.21 | ||
10 | 0.1345" | * | 6.00 | 15 | 10.29 | ||
9 | 0.1495" |
| 6.00 | 15 | 11.36 | ||
3/16 | 0.1880" |
| 6.10 / 12.20 | 15 | 14.04 | ||
1/4 | 0.2500" |
| 6.10 / 12.20 | 15 | 18.16 | ||
C-450 | 4.500" | 11 | 0.1196" | * | 6.00 | 12 | 10.42 |
1/4 | 0.2500" | * | 6.10 | 12 | 20.69 | ||
C-500 | 5.000" | 3/16 | 0.1880" | * | 6.10 | 12 | 17.85 |
1/4 | 0.2500" | * | 6.10 | 12 | 23.22 | ||
C-600 | 6.000" | 3/16 | 0.1880" |
| 12.20 | 9 | 21.65 |
1/4 | 0.2500" |
| 12.20 | 9 | 28.27 |
| Natural galvaized |
| Red paint |
| Natural |
| Green galvanized |
* | Made to order |
We offer square tubes from 0.394″ up to 6″, with wall thicknesses from 0.0177″ to 0.250″.
Thin-walled mechanical square tubing generally has industrial and blacksmithing uses.
Regularly, mechanical square tubes are made of thin cold rolled sheets and come in dimensions of 2.5″ or less.
Description | Size | Gauge | Thickness | Stock | Length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|---|
C-050 | 0.500" | 22 | 0.0299" | * | 6.00 | 231 | 0.28 |
20 | 0.0359" |
| 6.00 | 231 | 0.34 | ||
18 | 0.0478" |
| 6.00 | 231 | 0.44 | ||
16 | 0.0598" | * | 6.00 | 182 | 0.53 | ||
C-062 | 0.625" | 20 | 0.0359" | * | 6.00 | 252 | 0.43 |
18 | 0.0478" | * | 6.00 | 252 | 0.56 | ||
16 | 0.0598" | * | 6.00 | 252 | 0.68 | ||
C-075 | 0.750" | 22 | 0.0299" | * | 6.00 | 120 | 0.44 |
20 | 0.0359" |
| 6.00 | 120 | 0.52 | ||
18 | 0.0478" |
| 6.00 | 120 | 0.68 | ||
16 | 0.0598" | * | 6.00 | 120 | 0.84 | ||
14 | 0.0747" |
| 6.00 | 120 | 1.02 | ||
C-087 | 0.875" | 20 | 0.0359" | * | 6.00 | 112 | 0.61 |
14 | 0.0747" | * | 6.00 | 112 | 1.21 | ||
C-100 | 1.000" | 20 | 0.0359" |
| 6.00 | 100 | 0.70 |
18 | 0.0478" |
| 6.00 | 100 | 0.92 | ||
16 | 0.0598" |
| 6.00 | 100 | 1.14 | ||
14 | 0.0747" |
| 6.00 | 100 | 1.40 | ||
13 | 0.0897" | * | 6.00 | 100 | 1.65 | ||
12 | 0.1046" |
| 6.00 | 100 | 1.90 | ||
11 | 0.1196" |
| 6.00 | 80 | 1.94 | ||
10 | 0.1345" |
| 6.00 | 80 | 2.12 | ||
C-125 | 1.250" | 20 | 0.0359" |
| 6.00 | 81 | 0.88 |
18 | 0.0478" |
| 6.00 | 81 | 1.16 | ||
16 | 0.0598" |
| 6.00 | 81 | 1.44 | ||
14 | 0.0747" |
| 6.00 | 81 | 1.78 | ||
12 | 0.1046" |
| 6.00 | 63 | 2.42 | ||
11 | 0.1196" | * | 6.00 | 63 | 2.55 | ||
10 | 0.1345" | * | 6.00 | 63 | 2.80 | ||
C-150 | 1.500" | 20 | 0.0359" |
| 6.00 | 49 | 1.06 |
18 | 0.0478" |
| 6.00 | 49 | 1.40 | ||
16 | 0.0598" |
| 6.00 | 49 | 1.74 | ||
14 | 0.0747" |
| 6.00 | 49 | 2.15 | ||
12 | 0.1046" |
| 6.00 | 49 | 2.95 | ||
11 | 0.1196" |
| 6.00 | 49 | 3.15 | ||
10 | 0.1345" |
| 6.00 | 49 | 3.48 | ||
9 | 0.1495" | * | 6.00 | 49 | 3.79 | ||
C-175 | 1.750" | 16 | 0.0598" | * | 6.00 | 60 | 2.05 |
14 | 0.0747" |
| 6.00 | 60 | 2.53 | ||
11 | 0.1196" | * | 6.00 | 60 | 3.76 | ||
C-200 | 2.000" | 20 | 0.0359" | * | 6.00 | 50 | 1.43 |
18 | 0.0478" |
| 6.00 | 50 | 1.89 | ||
16 | 0.0598" |
| 6.00 | 50 | 2.35 | ||
14 | 0.0747" |
| 6.00 | 50 | 2.91 | ||
12 | 0.1046" |
| 6.00 | 40 | 4.01 | ||
11 | 0.1196" |
| 6.00 | 40 | 4.36 | ||
10 | 0.1345" |
| 6.00 | 40 | 4.84 | ||
9 | 0.1495" |
| 6.10 | 40 | 5.31 | ||
3/16 | 0.1880" |
| 6.10 | 40 | 6.43 | ||
1/4 | 0.2500" |
| 6.10 | 40 | 8.04 | ||
C-225 | 2.250" | 16 | 0.0598" | * | 6.00 | 50 | 2.65 |
14 | 0.0747" | * | 6.00 | 50 | 3.29 | ||
C-250 | 2.500" | 16 | 0.0598" | * | 6.00 | 36 | 2.95 |
14 | 0.0747" |
| 6.00 | 36 | 3.67 | ||
12 | 0.1046" | * | 6.00 | 27 | 5.07 | ||
11 | 0.1196" |
| 6.00 | 27 | 5.57 | ||
10 | 0.1345" |
| 6.00 | 27 | 6.20 | ||
9 | 0.1495" | * | 6.00 | 27 | 6.82 | ||
3/16 | 0.1880" |
| 6.10 | 27 | 8.34 | ||
1/4 | 0.2500" | * | 6.10 | 27 | 10.57 |
| Natural galvaized |
| Red paint |
| Natural |
| Green galvanized |
* | Made to order |
The poultry purlin is designed to facilitate the cleaning of chicken coop and spaces that house birds or animals.
Available on galvanized steel.
Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.
A | B | C | D | Gauge | Thickness | Stock | Kg / m |
|---|---|---|---|---|---|---|---|
7” | 2” | 0.787" | 0.787" | 14 | 0.0747 | * | 3.95 |
6” | 2” | 0.787" | 0.787" | 14 | 0.0747 | * | 3.57 |
5” | 2” | 0.787" | 0.787" | 14 | 0.0747 | * | 3.18 |
4” | 2” | 0.787" | 0.787" | 14 | 0.0747 | * | 2.79 |
* | Made to order |
The design of the Z purlin allows its transportation to be more efficient and has the same load resistance as the C purlin.
Made to order products are subject to minimum orders.
4” to 14” purlins are produced in lengths from 3 to 13 meters.
3” purlins are produced in lengths from 3 to 8 meters.
AxBxC | Gauge | Thickness | Stock | Standard length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|
| 14"x3.50"x1.00" | 10 | 0.1345 | * | 14.00 | 12 | 15.00 |
| 14"x3.50"x1.00" | 12 | 0.1046 | * | 14.00 | 12 | 12.10 |
| 14"x3.50"x1.00" | 14 | 0.0747 | * | 14.00 | 12 | 8.70 |
| 12"x3.50"x1.00" | 10 | 0.1345 | * | 12.00 | 12 | 13.60 |
| 12"x3.50"x1.00" | 12 | 0.1046 | * | 12.00 | 12 | 10.99 |
| 12"x3.50"x1.00" | 14 | 0.0747 | * | 12.00 | 12 | 7.87 |
| 10"x2.75"x0.75" | 10 | 0.1345 | * | 10.00 | 12 | 11.20 |
| 10"x2.75"x0.75" | 12 | 0.1046 | * | 10.00 | 12 | 9.06 |
| 10"x2.75"x0.75" | 14 | 0.0747 | * | 10.00 | 12 | 6.49 |
| 10"x2.75"x0.75" | 16 | 0.0598 | * | 10.00 | 12 | 5.20 |
| 9"x2.75"x0.75" | 10 | 0.1345 | * | 9.00 | 12 | 10.60 |
| 9"x2.75"x0.75" | 12 | 0.1046 | * | 9.00 | 12 | 8.50 |
| 9"x2.75"x0.75" | 14 | 0.0747 | * | 9.00 | 12 | 6.10 |
| 9"x2.75"x0.75" | 16 | 0.0598 | * | 9.00 | 12 | 4.90 |
| 8"x2.75"x0.75" | 10 | 0.1345 | * | 8.00 | 24 | 9.90 |
| 8"x2.75"x0.75" | 12 | 0.1046 | * | 8.00 | 24 | 7.96 |
| 8"x2.75"x0.75" | 14 | 0.0747 | * | 8.00 | 24 | 5.70 |
| 8"x2.75"x0.75" | 16 | 0.0598 | * | 8.00 | 24 | 4.50 |
| 7"x2.75"x0.75" | 10 | 0.1345 | * | 7.00 | 24 | 9.20 |
| 7"x2.75"x0.75" | 12 | 0.1046 | * | 7.00 | 24 | 7.40 |
| 7"x2.75"x0.75" | 14 | 0.0747 | * | 7.00 | 24 | 5.30 |
| 7"x2.75"x0.75" | 16 | 0.0598 | * | 7.00 | 24 | 4.20 |
| 6"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 7.30 |
| 6"x2.00"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 5.86 |
| 6"x2.00"x0.75" | 14 | 0.0747 | * | 6.00 | 48 | 4.19 |
| 6"x2.00"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 3.30 |
| 5"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 6.60 |
| 5"x2.00"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 5.30 |
| 5"x2.00"x0.75" | 14 | 0.0747 | * | 6.00 | 48 | 3.80 |
| 5"x2.00"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 3.00 |
| 4"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 5.90 |
| 4"x2.00"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 4.80 |
| 4"x2.00"x0.75" | 14 | 0.0747 | * | 6.00 | 48 | 3.40 |
| 4"x2.00"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 2.71 |
| 4"x1.50"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 5.20 |
| 4"x1.50"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 4.20 |
| 4"x1.50"x0.75" | 14 | 0.0747 | * | 6.00 | 48 | 2.96 |
| 4"x1.50"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 2.40 |
* | Made to order |
The C purlin is used in the construction segment as it offers great structural strength.
Contact your sales consultant to find out the feasibility in different sizes, lengths and finishes.
AxBxC | Gauge | Thickness | Stock | Standard length (m) | Pieces / bundle | Kg / m |
|---|---|---|---|---|---|---|
| 14"x3.50"x1.00" | 10 | 0.1345 | * | 14.00 | 12 | 15.00 |
| 14"x3.50"x1.00" | 12 | 0.1046 | * | 14.00 | 12 | 12.10 |
| 14"x3.50"x1.00" | 14 | 0.0747 | * | 14.00 | 12 | 8.70 |
| 12"x3.50"x1.00" | 10 | 0.1345 | * | 12.00 | 12 | 13.60 |
| 12"x3.50"x1.00" | 12 | 0.1046 |
| 12.00 | 12 | 10.99 |
| 12"x3.50"x1.00" | 14 | 0.0747 |
| 12.00 | 12 | 7.87 |
| 10"x2.75"x0.75" | 12 | 0.1046 |
| 10.00 | 12 | 9.06 |
| 10"x2.75"x0.75" | 14 | 0.0747 |
| 10.00 | 12 | 6.49 |
| 10"x2.75"x0.75" | 16 | 0.0598 | * | 10.00 | 12 | 5.20 |
| 9"x2.75"x0.75" | 10 | 0.1345 | * | 9.00 | 12 | 10.60 |
| 9"x2.75"x0.75" | 16 | 0.0598 | * | 9.00 | 12 | 4.90 |
| 8"x2.75"x0.75" | 10 | 0.1345 | * | 8.00 | 24 | 9.90 |
| 8"x2.75"x0.75" | 12 | 0.1046 |
| 8.00 | 24 | 7.96 |
| 8"x2.75"x0.75" | 14 | 0.0747 |
| 8.00 | 24 | 5.70 |
| 8"x2.75"x0.75" | 14 | 0.0747 |
| 6.00 | 24 | 5.70 |
| 8"x2.75"x0.75" | 16 | 0.0598 | * | 8.00 | 24 | 4.50 |
| 7"x2.75"x0.75" | 10 | 0.1345 | * | 7.00 | 24 | 9.20 |
| 7"x2.75"x0.75" | 14 | 0.0747 | * | 7.00 | 24 | 5.30 |
| 7"x2.75"x0.75 | 16 | 0.0598 | * | 7.00 | 24 | 4.20 |
| 6"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 7.30 |
| 6"x2.00"x0.75" | 12 | 0.1046 |
| 6.00 | 48 | 5.86 |
| 6"x2.00"x0.75" | 14 | 0.0747 |
| 6.00 | 48 | 4.19 |
| 6"x2.00"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 3.30 |
| 5"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 6.60 |
| 5"x2.00"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 5.30 |
| 5"x2.00"x0.75" | 14 | 0.0747 |
| 6.00 | 48 | 3.80 |
| 5"x2.00"x0.75" | 14 | 0.0747 |
| 5.00 | 48 | 3.80 |
| 5"x2.00"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 3.00 |
| 4"x2.00"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 5.90 |
| 4"x2.00"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 4.80 |
| 4"x2.00"x0.75" | 14 | 0.0747 |
| 6.00 | 48 | 3.40 |
| 4"x2.00"x0.75" | 14 | 0.0747 |
| 5.00 | 48 | 3.40 |
| 4"x2.00"x0.75" | 14 | 0.0747 |
| 4.00 | 48 | 3.40 |
| 4"x2.00"x0.75" | 16 | 0.0598 |
| 6.00 | 48 | 2.71 |
| 4"x1.50"x0.75" | 10 | 0.1345 | * | 6.00 | 48 | 5.20 |
| 4"x1.50"x0.75" | 12 | 0.1046 | * | 6.00 | 48 | 4.20 |
| 4"x1.50"x0.75" | 14 | 0.0747 |
| 6.00 | 48 | 2.96 |
| 4"x1.50"x0.75" | 16 | 0.0598 | * | 6.00 | 48 | 2.40 |
| 3"x1.50"x0.75" | 14 | 0.0747 |
| 6.00 | 60 | 2.61 |
| 3"x1.50"x0.75" | 16 | 0.0598 |
| 6.00 | 60 | 2.08 |
| Red paint |
| Natural galvanized |
| HSLA Red paint |
* | Made to order |
