Automotive

PROLAMSA offers high quality products for Tier 1, 2 and 3 suppliers of the automotive industry.

PROLAMSA guarantees to meet the highest quality standards and demands of our customers in the automotive industry.

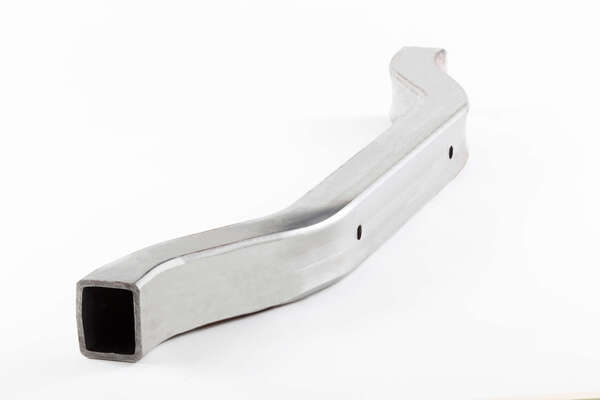

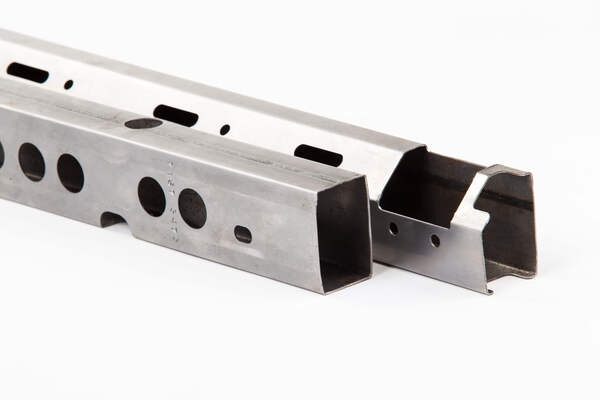

As a Tier-2 and Tier-3 supplier to the automotive industry, we offer specialized processes for our tubing such as: cnc cut to length, laser tube cutting, welding cells, bending and DOM tubing. We have state of the art machinery and our processes are certified in IATF16949 to supply quality products with high replicability levels.

Thanks to our joint venture with PROSANKIN, a PROLAMSA group company specialized in cold drawn pipe and seamless pipe production, we have the ability to design, develop and produce a wide variety of auto parts according to the needs of each client and their project.

Some of the applications of our products in the manufacture of auto parts are:

PROLAMSA

»Bars / Axes
»Accessories
»Seating
»Supports
»Hinges

PROSANKIN

»Shock absorbers
»Bars
»Bushings
»Hydraulic cylinders
»Transmissions
»Suspension

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
R-200	2.00"x 1.00"	20	0.0359"		6.00	50	1.06
		18	0.0478"		6.00	50	1.40
		16	0.0598"		6.00	50	1.74
		14	0.0747"		6.00	50	2.15
		12	0.1046"	*	6.00	50	2.95
		11	0.1196"	*	6.00	50	3.15
R-225	2.25"x 0.75"	20	0.0359"		6.00	55	1.06
R-225	2.25"x 0.75"	18	0.0478"		6.00	55	1.40
R-249	2.50"x 1.25"	20	0.0359"		6.00	54	1.34
		18	0.0478"		6.00	54	1.77
		16	0.0598"	*	6.00	54	2.20
		14	0.0747"	*	6.00	54	2.72
		12	0.1046"	*	6.00	54	3.75
R-250	2.50"x 1.50"	18	0.0478"	*	6.00	48	1.89
		14	0.0747"		6.00	48	2.91
		12	0.1046"	*	6.00	40	4.01
		11	0.1196"	*	6.00	40	4.36
R-275	2.75"x 1.00"	12	0.1046"	*	6.00	40	3.75
R-275	2.75"x 1.00"	11	0.1196"	*	6.00	40	4.06
R-375	3.00"x 0.75"	14	0.0747"	*	6.00	48	2.72
R-301	3.00"x 1.00"	18	0.0478"	*	6.00	48	1.89
		16	0.0598"	*	6.00	48	2.35
		14	0.0747"	*	6.00	48	2.91
		11	0.1196"	*	6.00	48	4.36
		10	0.1345"	*	6.00	48	4.84
R-300	3.00"x 1.50"	22	0.0299"		6.00	49	1.34
		20	0.0359"		6.00	49	1.61
		18	0.0478"		6.00	49	2.13
		16	0.0598"	*	6.00	49	2.65
		14	0.0747"		6.00	49	3.29
R-302	3.00"x 2.00"	16	0.0598"	*	6.00	28	2.95
		14	0.0747"		6.00	35	3.67
		12	0.1046"	*	6.00	28	5.07
		11	0.1196"		6.00	28	5.57
		10	0.1345"		6.00	28	6.20
		9	0.1495"	*	6.00	28	6.82
		3/16	0.1880"		6.10	28	8.34
		1/4	0.2500"	*	6.10	28	10.57
R-400	4.00"x 1.50"	20	0.0359"		6.00	35	1.97
		18	0.0478"		6.00	35	2.61
		16	0.0598"	*	6.00	35	3.26
		14	0.0747"		6.00	35	4.04
R-402	4.00"x 2.00"	14	0.0747"		6.00	35	4.42
		11	0.1196"		6.00	20	6.78
		10	0.1345"	*	6.00	20	7.56
		9	0.1495"		6.00	20	8.33
		3/16	0.1880"		6.10	20	10.24
		1/4	0.2500"	*	6.10	15	13.10
R-403	4.00"x 3.00"	14	0.0747"		6.00	20	5.18
		11	0.1196"		6.00	15	7.99
		9	0.1495"		6.00	15	9.85
		3/16	0.1880"		6.10	15	12.14
		1/4	0.2500"		6.10	15	15.63
R-502	5.00"x 2.00"	11	0.1196"	*	6.00	20	7.99
		3/16	0.1880"	*	6.10	20	12.14
		1/4	0.2500"	*	6.10	20	15.63
R-503	5.00"x 3.00"	11	0.1196"	*	6.00	16	9.21
		10	0.1345"	*	6.00	16	10.29
		3/16	0.1880"	*	6.10	16	14.03
		1/4	0.2500"	*	6.10	16	18.16
R-602	6.00"x 2.00"	14	0.0747"		6.10	24	5.93
		11	0.1196"	*	6.00	15	9.21
		3/16	0.1880"	*	6.10	15	14.03
		1/4	0.2500"	*	6.10	15	18.16
R-603	6.00"x 3.00"	11	0.1196"	*	6.00	16	10.42
		3/16	0.1880"	*	6.10	16	15.94
		1/4	0.2500"	*	6.10	16	20.69
R-604	6.00"x 4.00"	11	0.1196"		6.00	12	11.63
		9	0.1495"		6.10	12	14.38
		3/16	0.1880"	*	6.10	12	17.85
		1/4	0.2500"		6.10	12	23.22
R-804	8.00"x 4.00"	3/16	0.1880"	*	12.20	9	21.65
R-804	8.00"x 4.00"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-150	1.500"	20	0.0359"		6.00	49	1.06
		18	0.0478"		6.00	49	1.40
		16	0.0598"		6.00	49	1.74
		14	0.0747"		6.00	49	2.15
		12	0.1046"		6.00	49	2.95
		11	0.1196"		6.00	49	3.15
		10	0.1345"		6.00	49	3.48
		9	0.1495"	*	6.00	49	3.79
C-175	1.750"	16	0.0598"	*	6.00	60	2.05
		14	0.0747"		6.00	60	2.53
		11	0.1196"	*	6.00	60	3.76
C-200	2.000"	20	0.0359"	*	6.00	50	1.43
		18	0.0478"		6.00	50	1.89
		16	0.0598"		6.00	50	2.35
		14	0.0747"		6.00	50	2.91
		12	0.1046"		6.00	40	4.01
		11	0.1196"		6.00	40	4.36
		10	0.1345"		6.00	40	4.84
		9	0.1495"		6.10	40	5.31
		3/16	0.1880"		6.10	40	6.43
		1/4	0.2500"		6.10	40	8.04
C-225	2.250"	16	0.0598"	*	6.00	50	2.65
C-225	2.250"	14	0.0747"	*	6.00	50	3.29
C-250	2.500"	16	0.0598"	*	6.00	36	2.95
		14	0.0747"		6.00	36	3.67
		13	0.0897"	*	6.00	36	4.38
		12	0.1046"	*	6.00	27	5.07
		11	0.1196"		6.00	27	5.57
		10	0.1345"		6.00	27	6.20
		9	0.1495"	*	6.00	27	6.82
		3/16	0.1880"		6.10	27	8.34
		1/4	0.2500"	*	6.10	27	10.57
C-300	3.000"	14	0.0747"		6.00	35	4.42
		13	0.0897"	*	6.00	35	5.28
		12	0.1046"	*	6.00	21	6.13
		11	0.1196"		6.00	21	6.78
		10	0.1345"	*	6.00	21	7.56
		9	0.1495"		6.00	21	8.33
		3/16	0.1880"		6.10	21	10.24
		1/4	0.2500"		6.10	21	13.10
C-350	3.500"	14	0.0747"	*	6.00	18	5.18
		11	0.1196"		6.00	18	7.99
		9	0.1495"	*	6.00	18	9.85
		3/16	0.1880"		6.10	18	12.14
		1/4	0.2500"		6.10	18	15.63
C-400	4.000"	14	0.0747"		6.00	20	5.93
		11	0.1196"		6.00	15	9.21
		10	0.1345"	*	6.00	15	10.29
		9	0.1495"		6.00	15	11.36
		3/16	0.1880"		6.10	15	14.04
		1/4	0.2500"		6.10	15	18.16
C-450	4.500"	11	0.1196"	*	6.00	12	10.42
		3/16	0.1880"	*	6.10	12	15.94
		1/4	0.2500"	*	6.10	12	20.69
C-500	5.000"	3/16	0.1880"	*	6.10	12	17.85
C-500	5.000"	1/4	0.2500"	*	6.10	12	23.22
C-600	6.000"	3/16	0.1880"		12.20	9	21.65
C-600	6.000"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Width	Length	Gauge	Thickness	Stock	Width (m)	Length (m)	Kg / m
147-L	3'	3'	20	0.0359"	*	0.89	0.91	6.53
	3'	6.4'	20	0.0359"	*	0.89	1.95	6.53
	3'	8'	20	0.0359"	*	0.89	2.44	6.53
	3'	10'	20	0.0359"	*	0.89	3.05	6.53
	3'	6'	20	0.0359"	*	0.89	1.83	6.53
147-LC	3'	6'	22	0.0299"	*	0.89	1.83	5.45
	3'	8'	22	0.0299"	*	0.89	2.44	5.45
	3'	10'	22	0.0299"	*	0.89	3.05	5.45

AUTOMOTIVE

PROLAMSA offers high quality products for Tier 1, 2 and 3 suppliers of the automotive industry.

OTHER PRODUCTS

SQUARE

RECTANGULAR

ROUND

SPECIALS

SQUARE

RECTANGULAR

ROUND

SPECIALS

DO YOU HAVE ANY COMMENTS OR QUESTIONS?
CONTACT US!

PHONE

800 397 0000

+52 (81) 8154-0200

EMAIL

ventas@prolamsa.com

LOCATION

Carretera a Colombia Km. 5.75
General Escobedo, N.L. México., 66052

Your comments are very important to us.

About Us

Follow us

Products &
Services

Markets

Quality

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
2"	2 3/8"	0.216"	0.2160"	*	6.40	37	7.41
2 1/2"	2 7/8"	1/4"	0.2500"	*	6.40	37	10.43
3"	3 1/2"	5/16"	0.3125"	*	6.40	19	15.83
4"	4 1/2"	5/16"	0.3125"	*	6.40	19	20.80

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/4"	0.540"	14	0.0747"	*	6.40	169	0.55
3/8"	0.675"	13	0.0897"	*	6.40	169	0.83
1/2"	0.840"	12	0.1046"		6.40	91	1.22
3/4"	1.050"	12	0.1046"		6.40	91	1.57
1"	1.315"	10	0.1345"		6.40	61	2.52
1 1/4"	1.660"	10	0.1345"		6.40	37	3.26
1 1/2"	1.900"	10	0.1345"		6.40	37	3.77
2"	2 3/8"	9	0.1495"		6.00	37	5.29
2 1/2"	2 7/8"	0.203"	0.2030"		6.40	37	8.62
3"	3 1/2"	4	0.2242"		6.00 / 6.40	19	11.67
4"	4 1/2"	4	0.2242"		6.40	19	15.24
6"	6 5/8"	0.280"	0.2800"		6.40	7	28.24

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
3"	3 1/2"	3/16"	0.1875"	*	6.40	19	9.87
4"	4 1/2"	3/16"	0.1875"	*	6.40	19	12.85
6"	6 5/8"	3/16"	0.1875"	*	6.40	7	19.18
2 1/2"	2 7/8"	9	0.1495"	*	6.40	37	6.48
2"	2 3/8"	10	0.1345"		6.40	37	4.79

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/2"	0.500"	22	0.0299"		6.00	228	0.22
		20	0.0359"		6.03	228	0.26
		18	0.0478"		6.03	228	0.34
5/8"	0.625"	22	0.0299"	*	6.03	216	0.28
		20	0.0359"		6.03	216	0.34
		18	0.0478"		6.03	228	0.44
	0.675"	14	0.0747"	*	6.40	217	0.71
3/4"	0.750"	22	0.0299"	*	6.03	186	0.34
		20	0.0359"		6.03	186	0.41
		18	0.0478"		6.03	186	0.53
		16	0.0598"	*	6.03	169	0.66
	0.840"	13	0.0897"	*	6.40	91	1.07
7/8"	0.875"	20	0.0359"		6.03	180	0.48
		18	0.0478"		6.03	150	0.63
		14	0.0747"	*	6.03	169	0.95
1"	1.000"	20	0.0359"		6.03	137	0.55
		18	0.0478"		6.03	137	0.72
		16	0.0598"		6.03	127	0.89
	1.125"	18	0.0478"	*	6.03	175	0.82
	1.125"	14	0.0747"	*	6.03	186	1.25
1 1/4"	1.250"	20	0.0359"		6.03	124	0.69
		18	0.0478"		6.03	124	0.91
		16	0.0598"		6.03	127	1.13
		14	0.0747"	*	6.03	127	1.40
	1.315"	20	0.0359"	*	6.03	102	0.73
		18	0.0478"	*	6.03	102	0.96
		16	0.0598"	*	6.03	91	1.19
		12	0.1046"	*	6.03	61	2.01
1 1/2"	1.500"	20	0.0359"		6.03	95	0.84
		18	0.0478"		6.03	95	1.10
		16	0.0598"		6.03	91	1.37
		14	0.0747"	*	6.03	91	1.69
1 3/4"	1.750"	20	0.0359"	*	6.03	69	0.98
		18	0.0478"		6.03	69	1.29
		16	0.0598"		6.03	91	1.61
		14	0.0747"	*	6.03	61	1.99
1 7/8"	1.875"	20	0.0359"	*	6.03	95	1.05
1 7/8"	1.875"	12	0.1046"	*	6.03	50	2.94
2"	2.000"	20	0.0359"	*	6.03	67	1.12
		18	0.0478"		6.03	67	1.48
