Miter saw

State of-the-art equipment that allows to make high precision cuts at a very low cost. These machines can produce 90°, 60° and 45° cuts at very tight tolerances.

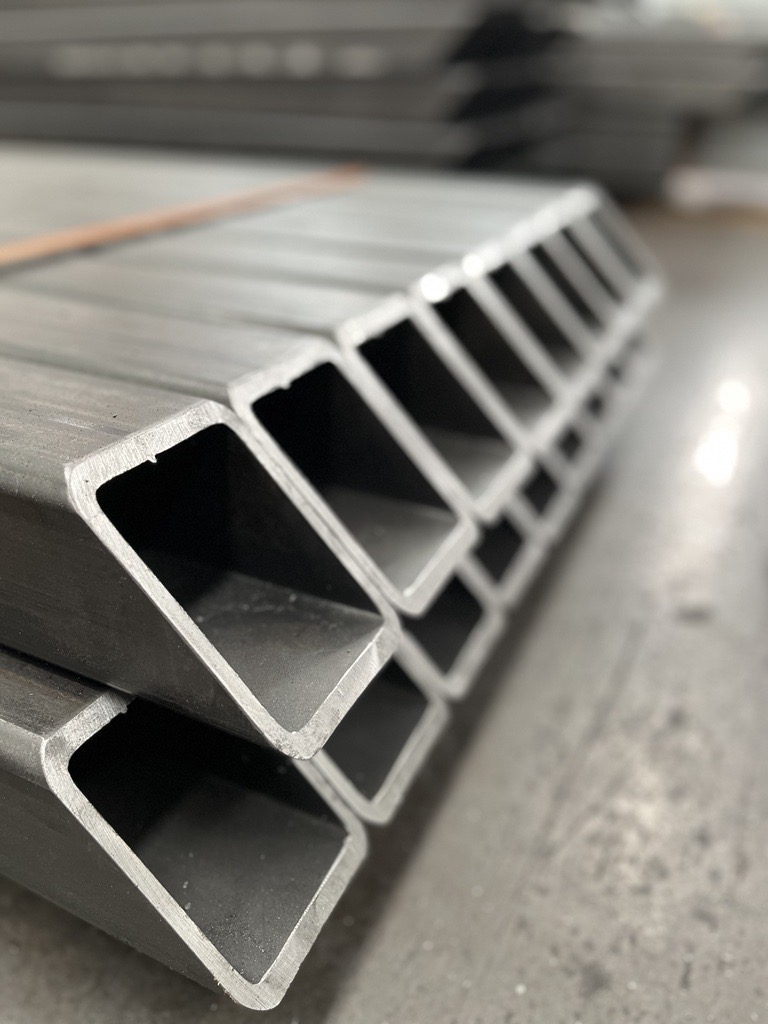

A miter saw is an automated tool that can make precise cuts to carbon steel profiles at special sizes and angles. The end products of this process are mostly used in industrial applications.

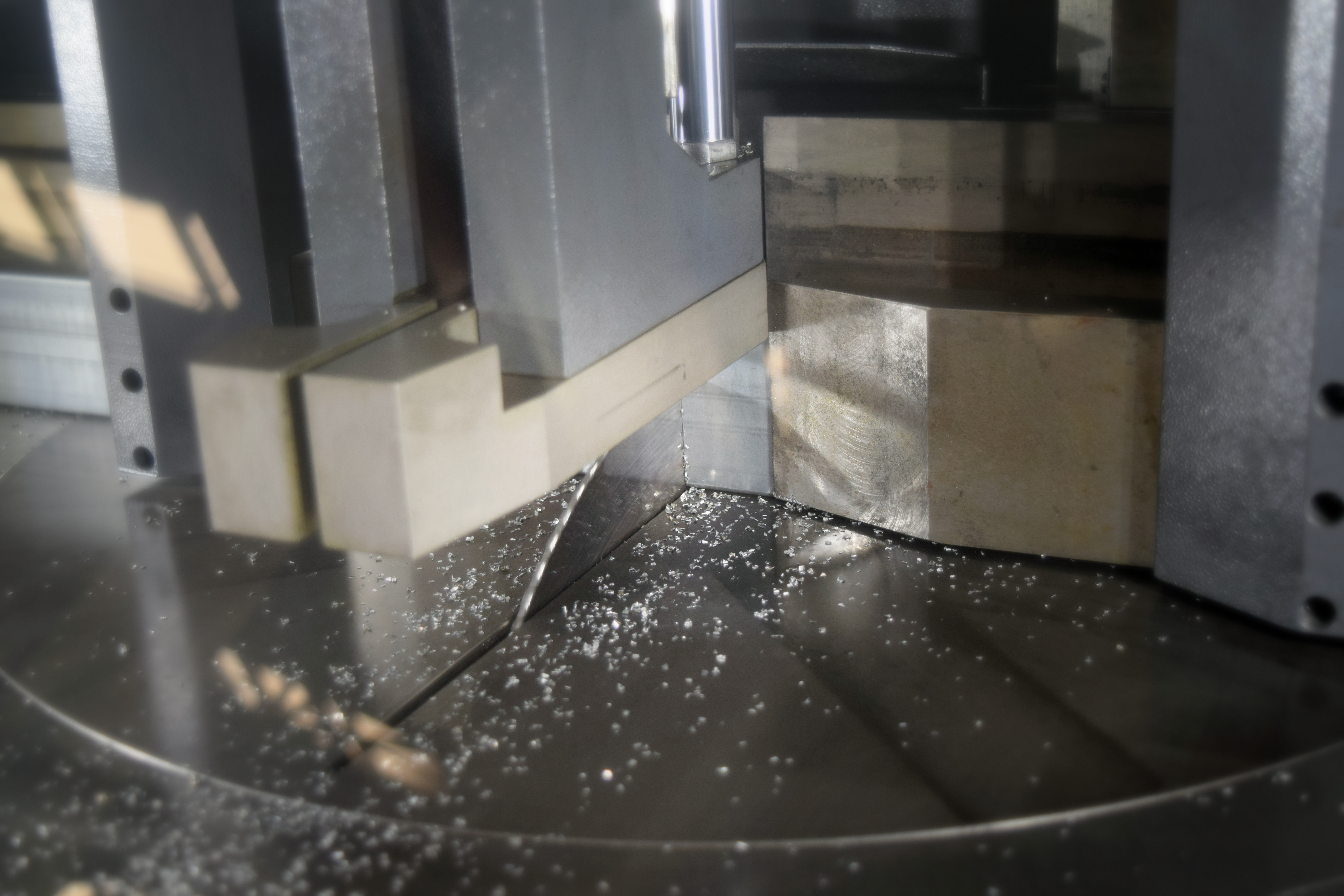

PROLAMSA’s miter saw equipments have the capacity of cutting carbon steel profiles at 90°, 60° and 45° with very small tolerances. The pieces cut in this process are very clean and with minimal burrs, thus minimizing manual rework.

Our state-of-the-art miter saw is capable of cutting carbon steel circular, square and rectangular profiles with diameters from 10 mm to 80 mm and with a maximum thickness of 15.88 mm.

The cuts that can be made through this value-added process, make our products adaptable to projects in any of the following markets:

Tolerancia Tolerance	Espesor Max. Max. Thickness	Largo Max. Max. Length	Tubo redondo Round tubes	Tubo cuadrado Square tubes	Tubo rectangular Rectangular tubes
+/- 0.15 mm	15.88 mm	6.0 m	406.40 mm	304.80 mm	203.20 mm x 406.40 mm
+/- 0.006"	0.625"	19.69 ft.	16.00"	12.00"	8.00" x 16.00"

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
R-200	2.00"x 1.00"	20	0.0359"		6.00	50	1.06
		18	0.0478"		6.00	50	1.40
		16	0.0598"		6.00	50	1.74
		14	0.0747"		6.00	50	2.15
		12	0.1046"	*	6.00	50	2.95
		11	0.1196"	*	6.00	50	3.15
R-225	2.25"x 0.75"	20	0.0359"		6.00	55	1.06
R-225	2.25"x 0.75"	18	0.0478"		6.00	55	1.40
R-249	2.50"x 1.25"	20	0.0359"		6.00	54	1.34
		18	0.0478"		6.00	54	1.77
		16	0.0598"	*	6.00	54	2.20
		14	0.0747"	*	6.00	54	2.72
		12	0.1046"	*	6.00	54	3.75
R-250	2.50"x 1.50"	18	0.0478"	*	6.00	48	1.89
		14	0.0747"		6.00	48	2.91
		12	0.1046"	*	6.00	40	4.01
		11	0.1196"	*	6.00	40	4.36
R-275	2.75"x 1.00"	12	0.1046"	*	6.00	40	3.75
R-275	2.75"x 1.00"	11	0.1196"	*	6.00	40	4.06
R-375	3.00"x 0.75"	14	0.0747"	*	6.00	48	2.72
R-301	3.00"x 1.00"	18	0.0478"	*	6.00	48	1.89
		16	0.0598"	*	6.00	48	2.35
		14	0.0747"	*	6.00	48	2.91
		11	0.1196"	*	6.00	48	4.36
		10	0.1345"	*	6.00	48	4.84
R-300	3.00"x 1.50"	22	0.0299"		6.00	49	1.34
		20	0.0359"		6.00	49	1.61
		18	0.0478"		6.00	49	2.13
		16	0.0598"	*	6.00	49	2.65
		14	0.0747"		6.00	49	3.29
R-302	3.00"x 2.00"	16	0.0598"	*	6.00	28	2.95
		14	0.0747"		6.00	35	3.67
		12	0.1046"	*	6.00	28	5.07
		11	0.1196"		6.00	28	5.57
		10	0.1345"		6.00	28	6.20
		9	0.1495"	*	6.00	28	6.82
		3/16	0.1880"		6.10	28	8.34
		1/4	0.2500"	*	6.10	28	10.57
R-400	4.00"x 1.50"	20	0.0359"		6.00	35	1.97
		18	0.0478"		6.00	35	2.61
		16	0.0598"	*	6.00	35	3.26
		14	0.0747"		6.00	35	4.04
R-402	4.00"x 2.00"	14	0.0747"		6.00	35	4.42
		11	0.1196"		6.00	20	6.78
		10	0.1345"	*	6.00	20	7.56
		9	0.1495"		6.00	20	8.33
		3/16	0.1880"		6.10	20	10.24
		1/4	0.2500"	*	6.10	15	13.10
R-403	4.00"x 3.00"	14	0.0747"		6.00	20	5.18
		11	0.1196"		6.00	15	7.99
		9	0.1495"		6.00	15	9.85
		3/16	0.1880"		6.10	15	12.14
		1/4	0.2500"		6.10	15	15.63
R-502	5.00"x 2.00"	11	0.1196"	*	6.00	20	7.99
		3/16	0.1880"	*	6.10	20	12.14
		1/4	0.2500"	*	6.10	20	15.63
R-503	5.00"x 3.00"	11	0.1196"	*	6.00	16	9.21
		10	0.1345"	*	6.00	16	10.29
		3/16	0.1880"	*	6.10	16	14.03
		1/4	0.2500"	*	6.10	16	18.16
R-602	6.00"x 2.00"	14	0.0747"		6.10	24	5.93
		11	0.1196"	*	6.00	15	9.21
		3/16	0.1880"	*	6.10	15	14.03
		1/4	0.2500"	*	6.10	15	18.16
R-603	6.00"x 3.00"	11	0.1196"	*	6.00	16	10.42
		3/16	0.1880"	*	6.10	16	15.94
		1/4	0.2500"	*	6.10	16	20.69
R-604	6.00"x 4.00"	11	0.1196"		6.00	12	11.63
		9	0.1495"		6.10	12	14.38
		3/16	0.1880"	*	6.10	12	17.85
		1/4	0.2500"		6.10	12	23.22
R-804	8.00"x 4.00"	3/16	0.1880"	*	12.20	9	21.65
R-804	8.00"x 4.00"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-150	1.500"	20	0.0359"		6.00	49	1.06
		18	0.0478"		6.00	49	1.40
		16	0.0598"		6.00	49	1.74
		14	0.0747"		6.00	49	2.15
		12	0.1046"		6.00	49	2.95
		11	0.1196"		6.00	49	3.15
		10	0.1345"		6.00	49	3.48
		9	0.1495"	*	6.00	49	3.79
C-175	1.750"	16	0.0598"	*	6.00	60	2.05
		14	0.0747"		6.00	60	2.53
		11	0.1196"	*	6.00	60	3.76
C-200	2.000"	20	0.0359"	*	6.00	50	1.43
		18	0.0478"		6.00	50	1.89
		16	0.0598"		6.00	50	2.35
		14	0.0747"		6.00	50	2.91
		12	0.1046"		6.00	40	4.01
		11	0.1196"		6.00	40	4.36
		10	0.1345"		6.00	40	4.84
		9	0.1495"		6.10	40	5.31
		3/16	0.1880"		6.10	40	6.43
		1/4	0.2500"		6.10	40	8.04
C-225	2.250"	16	0.0598"	*	6.00	50	2.65
C-225	2.250"	14	0.0747"	*	6.00	50	3.29
C-250	2.500"	16	0.0598"	*	6.00	36	2.95
		14	0.0747"		6.00	36	3.67
		13	0.0897"	*	6.00	36	4.38
		12	0.1046"	*	6.00	27	5.07
		11	0.1196"		6.00	27	5.57
		10	0.1345"		6.00	27	6.20
		9	0.1495"	*	6.00	27	6.82
		3/16	0.1880"		6.10	27	8.34
		1/4	0.2500"	*	6.10	27	10.57
C-300	3.000"	14	0.0747"		6.00	35	4.42
		13	0.0897"	*	6.00	35	5.28
		12	0.1046"	*	6.00	21	6.13
		11	0.1196"		6.00	21	6.78
		10	0.1345"	*	6.00	21	7.56
		9	0.1495"		6.00	21	8.33
		3/16	0.1880"		6.10	21	10.24
		1/4	0.2500"		6.10	21	13.10
C-350	3.500"	14	0.0747"	*	6.00	18	5.18
		11	0.1196"		6.00	18	7.99
		9	0.1495"	*	6.00	18	9.85
		3/16	0.1880"		6.10	18	12.14
		1/4	0.2500"		6.10	18	15.63
C-400	4.000"	14	0.0747"		6.00	20	5.93
		11	0.1196"		6.00	15	9.21
		10	0.1345"	*	6.00	15	10.29
		9	0.1495"		6.00	15	11.36
		3/16	0.1880"		6.10	15	14.04
		1/4	0.2500"		6.10	15	18.16
C-450	4.500"	11	0.1196"	*	6.00	12	10.42
		3/16	0.1880"	*	6.10	12	15.94
		1/4	0.2500"	*	6.10	12	20.69
C-500	5.000"	3/16	0.1880"	*	6.10	12	17.85
C-500	5.000"	1/4	0.2500"	*	6.10	12	23.22
C-600	6.000"	3/16	0.1880"		12.20	9	21.65
C-600	6.000"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Width	Length	Gauge	Thickness	Stock	Width (m)	Length (m)	Kg / m
147-L	3'	3'	20	0.0359"	*	0.89	0.91	6.53
	3'	6.4'	20	0.0359"	*	0.89	1.95	6.53
	3'	8'	20	0.0359"	*	0.89	2.44	6.53
	3'	10'	20	0.0359"	*	0.89	3.05	6.53
	3'	6'	20	0.0359"	*	0.89	1.83	6.53
147-LC	3'	6'	22	0.0299"	*	0.89	1.83	5.45
	3'	8'	22	0.0299"	*	0.89	2.44	5.45
	3'	10'	22	0.0299"	*	0.89	3.05	5.45

MITER SAW

State of-the-art equipment that allows to make high precision cuts at a very low cost. These machines can produce 90°, 60° and 45° cuts at very tight tolerances.

OTHER SERVICES

CNC CUT TO LENGTH

MITER SAW

LASER TUBE CUTTING

2D LASER CUTTING

BENDING

PURLIN PERFORATION

CNC BENDING CURTAIN

CNC CUT TO LENGTH

FLOW DRILLING

LASER TUBE CUTTING

BENDING

DO YOU HAVE ANY COMMENTS OR QUESTIONS?
CONTACT US!

PHONE

800 397 0000

+52 (81) 8154-0200

EMAIL

ventas@prolamsa.com

LOCATION

Carretera a Colombia Km. 5.75
General Escobedo, N.L. México., 66052

Your comments are very important to us.

About Us

Products &
Services

Markets

Quality

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
2"	2 3/8"	0.216"	0.2160"	*	6.40	37	7.41
2 1/2"	2 7/8"	1/4"	0.2500"	*	6.40	37	10.43
3"	3 1/2"	5/16"	0.3125"	*	6.40	19	15.83
4"	4 1/2"	5/16"	0.3125"	*	6.40	19	20.80

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/4"	0.540"	14	0.0747"	*	6.40	169	0.55
3/8"	0.675"	13	0.0897"	*	6.40	169	0.83
1/2"	0.840"	12	0.1046"		6.40	91	1.22
3/4"	1.050"	12	0.1046"		6.40	91	1.57
1"	1.315"	10	0.1345"		6.40	61	2.52
1 1/4"	1.660"	10	0.1345"		6.40	37	3.26
1 1/2"	1.900"	10	0.1345"		6.40	37	3.77
2"	2 3/8"	9	0.1495"		6.00	37	5.29
2 1/2"	2 7/8"	0.203"	0.2030"		6.40	37	8.62
3"	3 1/2"	4	0.2242"		6.00 / 6.40	19	11.67
4"	4 1/2"	4	0.2242"		6.40	19	15.24
6"	6 5/8"	0.280"	0.2800"		6.40	7	28.24

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
3"	3 1/2"	3/16"	0.1875"	*	6.40	19	9.87
4"	4 1/2"	3/16"	0.1875"	*	6.40	19	12.85
6"	6 5/8"	3/16"	0.1875"	*	6.40	7	19.18
2 1/2"	2 7/8"	9	0.1495"	*	6.40	37	6.48
2"	2 3/8"	10	0.1345"		6.40	37	4.79

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/2"	0.500"	22	0.0299"		6.00	228	0.22
		20	0.0359"		6.03	228	0.26
		18	0.0478"		6.03	228	0.34
5/8"	0.625"	22	0.0299"	*	6.03	216	0.28
		20	0.0359"		6.03	216	0.34
		18	0.0478"		6.03	228	0.44
	0.675"	14	0.0747"	*	6.40	217	0.71
3/4"	0.750"	22	0.0299"	*	6.03	186	0.34
		20	0.0359"		6.03	186	0.41
		18	0.0478"		6.03	186	0.53
		16	0.0598"	*	6.03	169	0.66
	0.840"	13	0.0897"	*	6.40	91	1.07
7/8"	0.875"	20	0.0359"		6.03	180	0.48
		18	0.0478"		6.03	150	0.63
		14	0.0747"	*	6.03	169	0.95
1"	1.000"	20	0.0359"		6.03	137	0.55
		18	0.0478"		6.03	137	0.72
		16	0.0598"		6.03	127	0.89
	1.125"	18	0.0478"	*	6.03	175	0.82
	1.125"	14	0.0747"	*	6.03	186	1.25
1 1/4"	1.250"	20	0.0359"		6.03	124	0.69
		18	0.0478"		6.03	124	0.91
		16	0.0598"		6.03	127	1.13
		14	0.0747"	*	6.03	127	1.40
	1.315"	20	0.0359"	*	6.03	102	0.73
		18	0.0478"	*	6.03	102	0.96
		16	0.0598"	*	6.03	91	1.19
		12	0.1046"	*	6.03	61	2.01
1 1/2"	1.500"	20	0.0359"		6.03	95	0.84
		18	0.0478"		6.03	95	1.10
		16	0.0598"		6.03	91	1.37
		14	0.0747"	*	6.03	91	1.69
1 3/4"	1.750"	20	0.0359"	*	6.03	69	0.98
		18	0.0478"		6.03	69	1.29
		16	0.0598"		6.03	91	1.61
		14	0.0747"	*	6.03	61	1.99
1 7/8"	1.875"	20	0.0359"	*	6.03	95	1.05
1 7/8"	1.875"	12	0.1046"	*	6.03	50	2.94
2"	2.000"	20	0.0359"	*	6.03	67	1.12
		18	0.0478"		6.03	67	1.48
