CNC CUT-TO-LENGTH

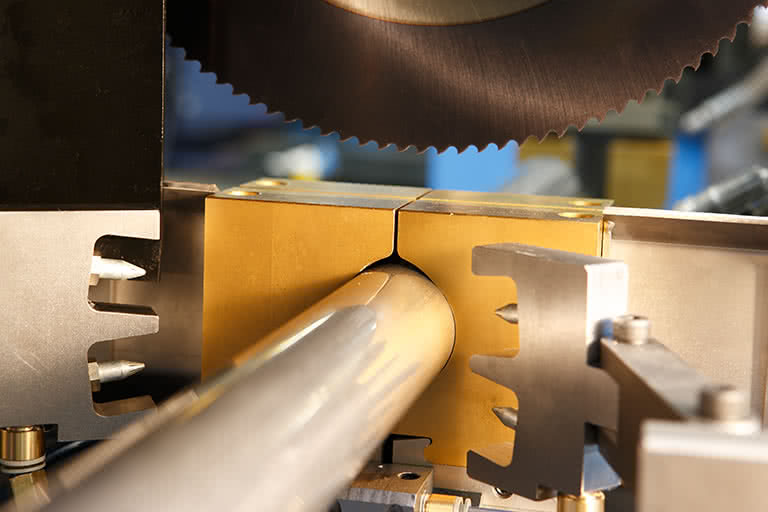

Automatic universal saw with cutting capacity for round, square and rectangular tubes. Cuts can be vertical and diagonal.

CNC cut-to-length is a computerized process used for cutting steel pipes to special lengths, and is typically used for industrial applications.

At PROLAMSA we have CNC cut-to-length equipment, with deburring technology which allows smooth cut edges free of microburrs, thus minimizing manual finishing work.

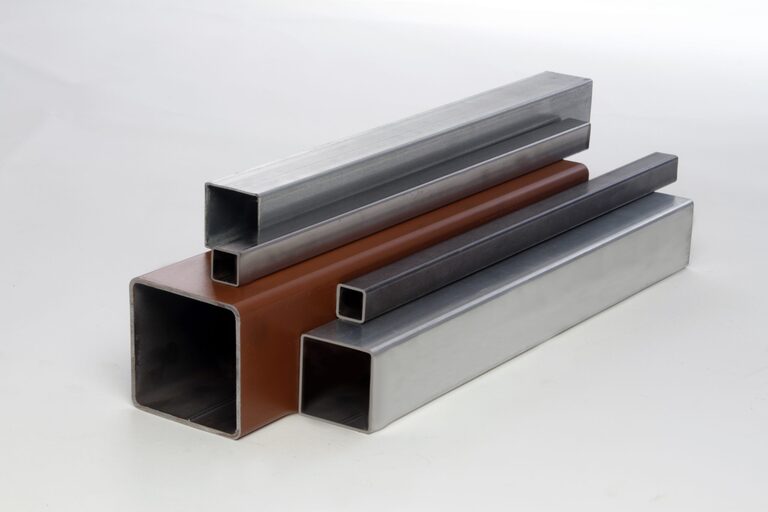

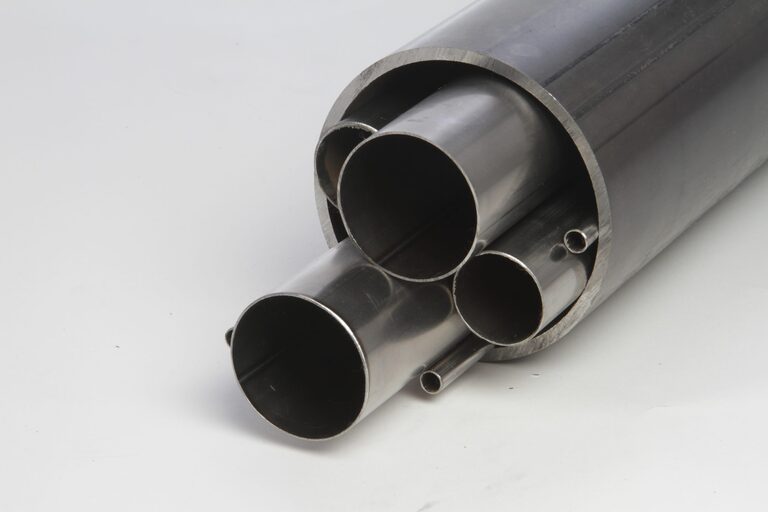

Our state-of-the-art CNC cut-to-length equipment has the capacity to cut round, square and rectangular carbon steel tubes with diameters from 10 mm to 80 mm (0.39″ to 3.15″) and with a maximum thickness of 15.88 mm (0.63″)

This value-added process makes our products suitable for projects in any of the following markets:

Tolerancia Tolerance	Espesor Max. Max. Thickness	Largo Max. Max. Length	Tubo redondo Round tubes	Tubo cuadrado Square tubes	Tubo rectangular Rectangular tubes
+/- 0.15 mm	15.88 mm	6.0 m	406.40 mm	304.80 mm	203.20 mm x 406.40 mm
+/- 0.006"	0.625"	19.69 ft.	16.00"	12.00"	8.00" x 16.00"

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
R-200	2.00"x 1.00"	20	0.0359"		6.00	50	1.06
		18	0.0478"		6.00	50	1.40
		16	0.0598"		6.00	50	1.74
		14	0.0747"		6.00	50	2.15
		12	0.1046"	*	6.00	50	2.95
		11	0.1196"	*	6.00	50	3.15
R-225	2.25"x 0.75"	20	0.0359"		6.00	55	1.06
R-225	2.25"x 0.75"	18	0.0478"		6.00	55	1.40
R-249	2.50"x 1.25"	20	0.0359"		6.00	54	1.34
		18	0.0478"		6.00	54	1.77
		16	0.0598"	*	6.00	54	2.20
		14	0.0747"	*	6.00	54	2.72
		12	0.1046"	*	6.00	54	3.75
R-250	2.50"x 1.50"	18	0.0478"	*	6.00	48	1.89
		14	0.0747"		6.00	48	2.91
		12	0.1046"	*	6.00	40	4.01
		11	0.1196"	*	6.00	40	4.36
R-275	2.75"x 1.00"	12	0.1046"	*	6.00	40	3.75
R-275	2.75"x 1.00"	11	0.1196"	*	6.00	40	4.06
R-375	3.00"x 0.75"	14	0.0747"	*	6.00	48	2.72
R-301	3.00"x 1.00"	18	0.0478"	*	6.00	48	1.89
		16	0.0598"	*	6.00	48	2.35
		14	0.0747"	*	6.00	48	2.91
		11	0.1196"	*	6.00	48	4.36
		10	0.1345"	*	6.00	48	4.84
R-300	3.00"x 1.50"	22	0.0299"		6.00	49	1.34
		20	0.0359"		6.00	49	1.61
		18	0.0478"		6.00	49	2.13
		16	0.0598"	*	6.00	49	2.65
		14	0.0747"		6.00	49	3.29
R-302	3.00"x 2.00"	16	0.0598"	*	6.00	28	2.95
		14	0.0747"		6.00	35	3.67
		12	0.1046"	*	6.00	28	5.07
		11	0.1196"		6.00	28	5.57
		10	0.1345"		6.00	28	6.20
		9	0.1495"	*	6.00	28	6.82
		3/16	0.1880"		6.10	28	8.34
		1/4	0.2500"	*	6.10	28	10.57
R-400	4.00"x 1.50"	20	0.0359"		6.00	35	1.97
		18	0.0478"		6.00	35	2.61
		16	0.0598"	*	6.00	35	3.26
		14	0.0747"		6.00	35	4.04
R-402	4.00"x 2.00"	14	0.0747"		6.00	35	4.42
		11	0.1196"		6.00	20	6.78
		10	0.1345"	*	6.00	20	7.56
		9	0.1495"		6.00	20	8.33
		3/16	0.1880"		6.10	20	10.24
		1/4	0.2500"	*	6.10	15	13.10
R-403	4.00"x 3.00"	14	0.0747"		6.00	20	5.18
		11	0.1196"		6.00	15	7.99
		9	0.1495"		6.00	15	9.85
		3/16	0.1880"		6.10	15	12.14
		1/4	0.2500"		6.10	15	15.63
R-502	5.00"x 2.00"	11	0.1196"	*	6.00	20	7.99
		3/16	0.1880"	*	6.10	20	12.14
		1/4	0.2500"	*	6.10	20	15.63
R-503	5.00"x 3.00"	11	0.1196"	*	6.00	16	9.21
		10	0.1345"	*	6.00	16	10.29
		3/16	0.1880"	*	6.10	16	14.03
		1/4	0.2500"	*	6.10	16	18.16
R-602	6.00"x 2.00"	14	0.0747"		6.10	24	5.93
		11	0.1196"	*	6.00	15	9.21
		3/16	0.1880"	*	6.10	15	14.03
		1/4	0.2500"	*	6.10	15	18.16
R-603	6.00"x 3.00"	11	0.1196"	*	6.00	16	10.42
		3/16	0.1880"	*	6.10	16	15.94
		1/4	0.2500"	*	6.10	16	20.69
R-604	6.00"x 4.00"	11	0.1196"		6.00	12	11.63
		9	0.1495"		6.10	12	14.38
		3/16	0.1880"	*	6.10	12	17.85
		1/4	0.2500"		6.10	12	23.22
R-804	8.00"x 4.00"	3/16	0.1880"	*	12.20	9	21.65
R-804	8.00"x 4.00"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Size	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-150	1.500"	20	0.0359"		6.00	49	1.06
		18	0.0478"		6.00	49	1.40
		16	0.0598"		6.00	49	1.74
		14	0.0747"		6.00	49	2.15
		12	0.1046"		6.00	49	2.95
		11	0.1196"		6.00	49	3.15
		10	0.1345"		6.00	49	3.48
		9	0.1495"	*	6.00	49	3.79
C-175	1.750"	16	0.0598"	*	6.00	60	2.05
		14	0.0747"		6.00	60	2.53
		11	0.1196"	*	6.00	60	3.76
C-200	2.000"	20	0.0359"	*	6.00	50	1.43
		18	0.0478"		6.00	50	1.89
		16	0.0598"		6.00	50	2.35
		14	0.0747"		6.00	50	2.91
		12	0.1046"		6.00	40	4.01
		11	0.1196"		6.00	40	4.36
		10	0.1345"		6.00	40	4.84
		9	0.1495"		6.10	40	5.31
		3/16	0.1880"		6.10	40	6.43
		1/4	0.2500"		6.10	40	8.04
C-225	2.250"	16	0.0598"	*	6.00	50	2.65
C-225	2.250"	14	0.0747"	*	6.00	50	3.29
C-250	2.500"	16	0.0598"	*	6.00	36	2.95
		14	0.0747"		6.00	36	3.67
		13	0.0897"	*	6.00	36	4.38
		12	0.1046"	*	6.00	27	5.07
		11	0.1196"		6.00	27	5.57
		10	0.1345"		6.00	27	6.20
		9	0.1495"	*	6.00	27	6.82
		3/16	0.1880"		6.10	27	8.34
		1/4	0.2500"	*	6.10	27	10.57
C-300	3.000"	14	0.0747"		6.00	35	4.42
		13	0.0897"	*	6.00	35	5.28
		12	0.1046"	*	6.00	21	6.13
		11	0.1196"		6.00	21	6.78
		10	0.1345"	*	6.00	21	7.56
		9	0.1495"		6.00	21	8.33
		3/16	0.1880"		6.10	21	10.24
		1/4	0.2500"		6.10	21	13.10
C-350	3.500"	14	0.0747"	*	6.00	18	5.18
		11	0.1196"		6.00	18	7.99
		9	0.1495"	*	6.00	18	9.85
		3/16	0.1880"		6.10	18	12.14
		1/4	0.2500"		6.10	18	15.63
C-400	4.000"	14	0.0747"		6.00	20	5.93
		11	0.1196"		6.00	15	9.21
		10	0.1345"	*	6.00	15	10.29
		9	0.1495"		6.00	15	11.36
		3/16	0.1880"		6.10	15	14.04
		1/4	0.2500"		6.10	15	18.16
C-450	4.500"	11	0.1196"	*	6.00	12	10.42
		3/16	0.1880"	*	6.10	12	15.94
		1/4	0.2500"	*	6.10	12	20.69
C-500	5.000"	3/16	0.1880"	*	6.10	12	17.85
C-500	5.000"	1/4	0.2500"	*	6.10	12	23.22
C-600	6.000"	3/16	0.1880"		12.20	9	21.65
C-600	6.000"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Description	Width	Length	Gauge	Thickness	Stock	Width (m)	Length (m)	Kg / m
147-L	3'	3'	20	0.0359"	*	0.89	0.91	6.53
	3'	6.4'	20	0.0359"	*	0.89	1.95	6.53
	3'	8'	20	0.0359"	*	0.89	2.44	6.53
	3'	10'	20	0.0359"	*	0.89	3.05	6.53
	3'	6'	20	0.0359"	*	0.89	1.83	6.53
147-LC	3'	6'	22	0.0299"	*	0.89	1.83	5.45
	3'	8'	22	0.0299"	*	0.89	2.44	5.45
	3'	10'	22	0.0299"	*	0.89	3.05	5.45

CNC CUT-TO-LENGTH

Automatic universal saw with cutting capacity for round, square and rectangular tubes. Cuts can be vertical and diagonal.

OTHER SERVICES

CNC CUT TO LENGTH

MITER SAW

LASER TUBE CUTTING

2D LASER CUTTING

BENDING

PURLIN PERFORATION

CNC BENDING CURTAIN

CNC CUT TO LENGTH

FLOW DRILLING

LASER TUBE CUTTING

BENDING

DO YOU HAVE ANY COMMENTS OR QUESTIONS?
CONTACT US!

PHONE

800 397 0000

+52 (81) 8154-0200

EMAIL

ventas@prolamsa.com

LOCATION

Carretera a Colombia Km. 5.75
General Escobedo, N.L. México., 66052

Your comments are very important to us.

About Us

Follow us

Products &
Services

Markets

Quality

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
2"	2 3/8"	0.216"	0.2160"	*	6.40	37	7.41
2 1/2"	2 7/8"	1/4"	0.2500"	*	6.40	37	10.43
3"	3 1/2"	5/16"	0.3125"	*	6.40	19	15.83
4"	4 1/2"	5/16"	0.3125"	*	6.40	19	20.80

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/4"	0.540"	14	0.0747"	*	6.40	169	0.55
3/8"	0.675"	13	0.0897"	*	6.40	169	0.83
1/2"	0.840"	12	0.1046"		6.40	91	1.22
3/4"	1.050"	12	0.1046"		6.40	91	1.57
1"	1.315"	10	0.1345"		6.40	61	2.52
1 1/4"	1.660"	10	0.1345"		6.40	37	3.26
1 1/2"	1.900"	10	0.1345"		6.40	37	3.77
2"	2 3/8"	9	0.1495"		6.00	37	5.29
2 1/2"	2 7/8"	0.203"	0.2030"		6.40	37	8.62
3"	3 1/2"	4	0.2242"		6.00 / 6.40	19	11.67
4"	4 1/2"	4	0.2242"		6.40	19	15.24
6"	6 5/8"	0.280"	0.2800"		6.40	7	28.24

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
3"	3 1/2"	3/16"	0.1875"	*	6.40	19	9.87
4"	4 1/2"	3/16"	0.1875"	*	6.40	19	12.85
6"	6 5/8"	3/16"	0.1875"	*	6.40	7	19.18
2 1/2"	2 7/8"	9	0.1495"	*	6.40	37	6.48
2"	2 3/8"	10	0.1345"		6.40	37	4.79

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/2"	0.500"	22	0.0299"		6.00	228	0.22
		20	0.0359"		6.03	228	0.26
		18	0.0478"		6.03	228	0.34
5/8"	0.625"	22	0.0299"	*	6.03	216	0.28
		20	0.0359"		6.03	216	0.34
		18	0.0478"		6.03	228	0.44
	0.675"	14	0.0747"	*	6.40	217	0.71
3/4"	0.750"	22	0.0299"	*	6.03	186	0.34
		20	0.0359"		6.03	186	0.41
		18	0.0478"		6.03	186	0.53
		16	0.0598"	*	6.03	169	0.66
	0.840"	13	0.0897"	*	6.40	91	1.07
7/8"	0.875"	20	0.0359"		6.03	180	0.48
		18	0.0478"		6.03	150	0.63
		14	0.0747"	*	6.03	169	0.95
1"	1.000"	20	0.0359"		6.03	137	0.55
		18	0.0478"		6.03	137	0.72
		16	0.0598"		6.03	127	0.89
	1.125"	18	0.0478"	*	6.03	175	0.82
	1.125"	14	0.0747"	*	6.03	186	1.25
1 1/4"	1.250"	20	0.0359"		6.03	124	0.69
		18	0.0478"		6.03	124	0.91
		16	0.0598"		6.03	127	1.13
		14	0.0747"	*	6.03	127	1.40
	1.315"	20	0.0359"	*	6.03	102	0.73
		18	0.0478"	*	6.03	102	0.96
		16	0.0598"	*	6.03	91	1.19
		12	0.1046"	*	6.03	61	2.01
1 1/2"	1.500"	20	0.0359"		6.03	95	0.84
		18	0.0478"		6.03	95	1.10
		16	0.0598"		6.03	91	1.37
		14	0.0747"	*	6.03	91	1.69
1 3/4"	1.750"	20	0.0359"	*	6.03	69	0.98
		18	0.0478"		6.03	69	1.29
		16	0.0598"		6.03	91	1.61
		14	0.0747"	*	6.03	61	1.99
1 7/8"	1.875"	20	0.0359"	*	6.03	95	1.05
1 7/8"	1.875"	12	0.1046"	*	6.03	50	2.94
2"	2.000"	20	0.0359"	*	6.03	67	1.12
		18	0.0478"		6.03	67	1.48
