CONSTRUCTION

PROLAMSA’s construction products offer durability and resistance for your project.
Discover its different applications here.

For the construction segment, we offer a wide range of products: door and window steel shapes, rails, schedule pipes, purlins, and structural HSS tubes of large dimensions and thicknesses.

Additionally, we offer galvanized pipe which provides greater protection against corrosion in places prone to humidity.

Using PROLAMSA’s products in your design guarantees that your construction will have the durability and resistance you need to build:

»Light and heavy structures
»Doors and windows frames
»Fences
»Greenhouses
»Scaffolding
»Solar panel mounts
»Cartports

OTHER PRODUCTS

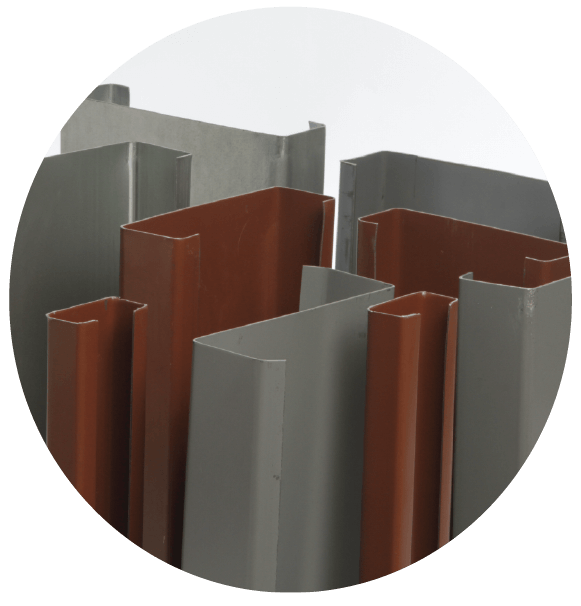

PURLINS

The purlin, also known as “monten”, has a wide variety of uses in the construction of structures and roofs.

We offer purlins from 3 ″ to 14 ″ wide, made with steel sheets from 0.0598 ″ to 0.1345 ″.

SQUARE

We offer square tubing from 0.394 ″ to 6 ″, with sheet thicknesses from 0.0177 ″ to 0.250 ″

The thick-walled tube is ideal for your construction projects.

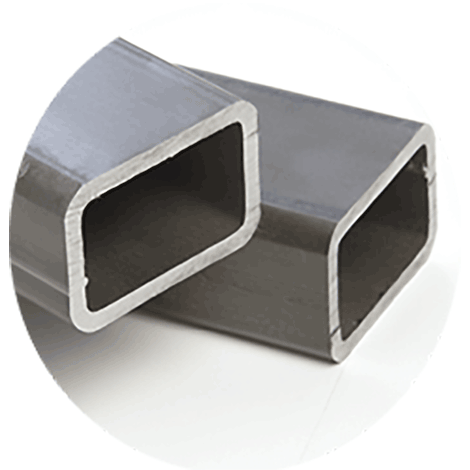

RECTANGULAR

It’s one of the basic steel shapes. The thick-walled tube is ideal for construction use.

It is available from 0.394 ″ x 0.591 ″ to 8 ″ x 4 ″

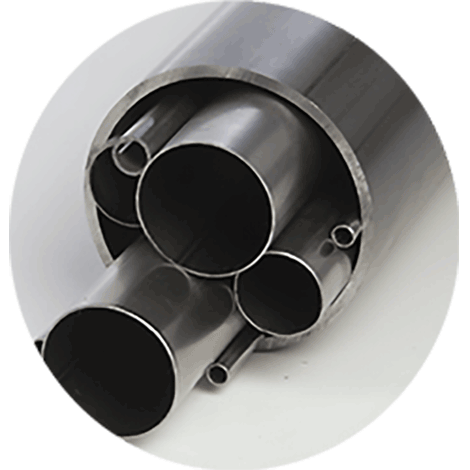

ROUND

The round tube is ideal for industrial, structural use. It can also be use to build fences.

We offer round tubing from ½ “to 6”

SHAPES

At PROLAMSA we offer steel shapes in gauges 20 to 14.

They are ideal for the assembly of windows, doors, closet rails, gates, as well as hand railings.

DECKS

Our decks are designed to assamble doors, fences and other steel works..

PROLAMSA offers lengths from 3′ to 10′ and thicknesses go from 0.0299″ to 0.0359

SHEETS

They are the ideal solution for any blacksmith job.

PROLAMSA has sheets from 3×8 ‘to 4×10’ in gauges from 22 to 3/16

PURLINS

The purlin, also known as “monten”, has a wide variety of uses in the construction of structures and roofs.

We offer purlins from 3 ″ to 14 ″ wide, made with steel sheets from 0.0598 ″ to 0.1345 ″.

SQUARE

We offer square tubing from 0.394 ″ to 6 ″, with sheet thicknesses from 0.0177 ″ to 0.250 ″

The thick-walled tube is ideal for your construction projects.

RECTANGULAR

It’s one of the basic steel shapes. The thick-walled tube is ideal for construction use.

It is available from 0.394 ″ x 0.591 ″ to 8 ″ x 4 ″

ROUND

The round tube is ideal for industrial, structural use. It can also be use to build fences.

We offer round tubing from ½ “to 6”

SHAPES

At PROLAMSA we offer steel shapes in gauges 20 to 14.

They are ideal for the assembly of windows, doors, closet rails, gates, as well as hand railings.

DECKS

Our decks are designed to assamble doors, fences and other steel works..

PROLAMSA offers lengths from 3′ to 10′ and thicknesses go from 0.0299″ to 0.0359

SHEETS

They are the ideal solution for any blacksmith job.

PROLAMSA has sheets from 3×8 ‘to 4×10’ in gauges from 22 to 3/16

DO YOU HAVE ANY COMMENTS OR QUESTIONS?
CONTACT US!

PHONE

800 397 0000

+52 (81) 8154-0200

EMAIL

ventas@prolamsa.com

LOCATION

Carretera a Colombia Km. 5.75
General Escobedo, N.L. México., 66052

Your comments are very important to us.

Deck 147 is also known as “Diamond Point” due to the “v” shape of its die cut

Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.

Description	Width	Length	Gauge	Thickness	Stock	Width (m)	Length (m)	Kg / m
147-L	3'	3'	20	0.0359"	*	0.89	0.91	6.53
	3'	6.4'	20	0.0359"	*	0.89	1.95	6.53
	3'	8'	20	0.0359"	*	0.89	2.44	6.53
	3'	10'	20	0.0359"	*	0.89	3.05	6.53
	3'	6'	20	0.0359"	*	0.89	1.83	6.53
147-LC	3'	6'	22	0.0299"	*	0.89	1.83	5.45
	3'	8'	22	0.0299"	*	0.89	2.44	5.45
	3'	10'	22	0.0299"	*	0.89	3.05	5.45

*	Made to order

A-Moulding on width

L-Moulding on length

LC- Moulding on length (Continuous)

Deck 149 is also called “small box” deck as its square die cut is 3/8 ” wide

Bundles include 50 pieces each.
Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.

Description	Width	Length	Gauge	Thickness	Stock	Width (m)	Length m.(m)	Kg / m
149-LC	3'	3'	20	0.0359"	*	0.81	0.91	6.53
	3'	6.4'	20	0.0359"		0.81	1.95	6.53
	3'	8'	20	0.0359"		0.81	2.44	6.53
	3'	10'	20	0.0359"		0.81	3.05	6.53

	Red paint
*	Made to order

A-Moulding on width

L-Moulding on length

LC- Moulding on length (Continuous)

Producimos PTR rectangular en una gran variedad de dimensiones y espesores.
El PTR (Perfil Tubular Rectangular) cuenta con una mayor solidez para usos estructurales.
Regularmente, el PTR rectangular se fabrica con lámina rolada en caliente en calibre 16 o superior.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
R-150	1.50"x 0.75"	16	0.0598"	*	6.00	98	1.29
		14	0.0747"	*	6.00	98	1.59
		11	0.1196"	*	6.00	98	2.25
R-151	1.50"x 1.00"	20	0.0359"	*	6.00	84	0.88
		18	0.0478"		6.00	84	1.16
		16	0.0598"	*	6.00	100	1.44
		14	0.0747"	*	6.00	84	1.78
		11	0.1196"	*	6.00	63	2.55
R-175	1.75"x 0.75"	20	0.0359"		6.00	84	0.88
R-175	1.75"x 0.75"	18	0.0478"		6.00	84	1.16
R-200	2.00"x 1.00"	20	0.0359"		6.00	50	1.06
		18	0.0478"		6.00	50	1.40
		16	0.0598"		6.00	50	1.74
		14	0.0747"		6.00	50	2.15
		12	0.1046"	*	6.00	50	2.95
		11	0.1196"	*	6.00	50	3.15
R-225	2.25"x 0.75"	20	0.0359"		6.00	55	1.06
R-225	2.25"x 0.75"	18	0.0478"		6.00	55	1.40
R-249	2.50"x 1.25"	20	0.0359"		6.00	54	1.34
		18	0.0478"		6.00	54	1.77
		16	0.0598"	*	6.00	54	2.20
		14	0.0747"	*	6.00	54	2.72
		12	0.1046"	*	6.00	54	3.75
R-250	2.50"x 1.50"	18	0.0478"	*	6.00	48	1.89
		14	0.0747"		6.00	48	2.91
		12	0.1046"	*	6.00	40	4.01
		11	0.1196"	*	6.00	40	4.36
R-275	2.75"x 1.00"	12	0.1046"	*	6.00	40	3.75
R-275	2.75"x 1.00"	11	0.1196"	*	6.00	40	4.06
R-375	3.00"x 0.75"	14	0.0747"	*	6.00	48	2.72
R-301	3.00"x 1.00"	18	0.0478"	*	6.00	48	1.89
		16	0.0598"	*	6.00	48	2.35
		14	0.0747"	*	6.00	48	2.91
		11	0.1196"	*	6.00	48	4.36
		10	0.1345"	*	6.00	48	4.84
R-300	3.00"x 1.50"	22	0.0299"		6.00	49	1.34
		20	0.0359"		6.00	49	1.61
		18	0.0478"		6.00	49	2.13
		16	0.0598"	*	6.00	49	2.65
		14	0.0747"		6.00	49	3.29
R-302	3.00"x 2.00"	16	0.0598"	*	6.00	28	2.95
		14	0.0747"		6.00	35	3.67
		12	0.1046"	*	6.00	28	5.07
		11	0.1196"		6.00	28	5.57
		10	0.1345"		6.00	28	6.20
		9	0.1495"	*	6.00	28	6.82
		3/16	0.1880"		6.10	28	8.34
		1/4	0.2500"	*	6.10	28	10.57
R-400	4.00"x 1.50"	20	0.0359"		6.00	35	1.97
		18	0.0478"		6.00	35	2.61
		16	0.0598"	*	6.00	35	3.26
		14	0.0747"		6.00	35	4.04
R-402	4.00"x 2.00"	14	0.0747"		6.00	35	4.42
		11	0.1196"		6.00	20	6.78
		10	0.1345"	*	6.00	20	7.56
		9	0.1495"		6.00	20	8.33
		3/16	0.1880"		6.10	20	10.24
		1/4	0.2500"	*	6.10	15	13.10
R-403	4.00"x 3.00"	14	0.0747"		6.00	20	5.18
		11	0.1196"		6.00	15	7.99
		9	0.1495"		6.00	15	9.85
		3/16	0.1880"		6.10	15	12.14
		1/4	0.2500"		6.10	15	15.63
R-502	5.00"x 2.00"	11	0.1196"	*	6.00	20	7.99
		3/16	0.1880"	*	6.10	20	12.14
		1/4	0.2500"	*	6.10	20	15.63
R-503	5.00"x 3.00"	11	0.1196"	*	6.00	16	9.21
		10	0.1345"	*	6.00	16	10.29
		3/16	0.1880"	*	6.10	16	14.03
		1/4	0.2500"	*	6.10	16	18.16
R-602	6.00"x 2.00"	14	0.0747"		6.10	24	5.93
		11	0.1196"	*	6.00	15	9.21
		3/16	0.1880"	*	6.10	15	14.03
		1/4	0.2500"	*	6.10	15	18.16
R-603	6.00"x 3.00"	11	0.1196"	*	6.00	16	10.42
		3/16	0.1880"	*	6.10	16	15.94
		1/4	0.2500"	*	6.10	16	20.69
R-604	6.00"x 4.00"	11	0.1196"		6.00	12	11.63
		9	0.1495"		6.10	12	14.38
		3/16	0.1880"	*	6.10	12	17.85
		1/4	0.2500"		6.10	12	23.22
R-804	8.00"x 4.00"	3/16	0.1880"	*	12.20	9	21.65
R-804	8.00"x 4.00"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Schedule 80 tubing is used for structural applications

Made to order products are subject to minimum orders.
ASTM A513 Standard.

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
2"	2 3/8"	0.216"	0.2160"	*	6.40	37	7.41
2 1/2"	2 7/8"	1/4"	0.2500"	*	6.40	37	10.43
3"	3 1/2"	5/16"	0.3125"	*	6.40	19	15.83
4"	4 1/2"	5/16"	0.3125"	*	6.40	19	20.80

*	Made to order

Schedule 40 tubing is used for structural applications

Made to order products are subject to minimum orders.
ASTM A513 Standard.

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/4"	0.540"	14	0.0747"	*	6.40	169	0.55
3/8"	0.675"	13	0.0897"	*	6.40	169	0.83
1/2"	0.840"	12	0.1046"		6.40	91	1.22
3/4"	1.050"	12	0.1046"		6.40	91	1.57
1"	1.315"	10	0.1345"		6.40	61	2.52
1 1/4"	1.660"	10	0.1345"		6.40	37	3.26
1 1/2"	1.900"	10	0.1345"		6.40	37	3.77
2"	2 3/8"	9	0.1495"		6.00	37	5.29
2 1/2"	2 7/8"	0.203"	0.2030"		6.40	37	8.62
3"	3 1/2"	4	0.2242"		6.00 / 6.40	19	11.67
4"	4 1/2"	4	0.2242"		6.40	19	15.24
6"	6 5/8"	0.280"	0.2800"		6.40	7	28.24

	Natural
*	Made to order

Schedule 30 tubing is used for structural applications

Made to order products are subject to minimum orders.
ASTM A513 Standard.

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/2"	0.840"	14	0.0747"		6.10	169	0.91
3/4"	1.050"	14	0.0747"		6.10	127	1.16
1"	1.315"	14	0.0747"		6.10	91	1.47
1 1/4"	1.660"	13	0.0897"		6.10	61	2.24
1 1/2"	1.900"	13	0.0897"		6.10	61	2.58
2"	2 3/8"	12	0.1046"		6.10	37	3.77
2 1/2"	2 7/8"	12	0.1046"		6.10	37	4.61
3"	3 1/2"	11	0.1196"		6.10	19	6.43
4"	4 1/2"	11	0.1196"		6.10	19	8.33
6"	6 5/8"	3/16"	0.1880"		6.10	7	19.23

	Natural
*	Made to order

Schedule X tubing is used for structural applications

Made to order products are subject to minimum orders.
ASTM A513 Standard.

Nominal diameter	External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
3"	3 1/2"	3/16"	0.1875"	*	6.40	19	9.87
4"	4 1/2"	3/16"	0.1875"	*	6.40	19	12.85
6"	6 5/8"	3/16"	0.1875"	*	6.40	7	19.18
2 1/2"	2 7/8"	9	0.1495"	*	6.40	37	6.48
2"	2 3/8"	10	0.1345"		6.40	37	4.79

	Natural
*	Made to order

Our round tubes come in an array of diameters and thicknesses:

Made to order products subject to minimum orders.
Available in cold rolled steel with red primer and galvanized with green primer.
ASTM A500 & A513 Standard.
Ask your sales representative for different lengths, thickness and coatings.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1/2"	0.500"	22	0.0299"		6.00	228	0.22
		20	0.0359"		6.03	228	0.26
		18	0.0478"		6.03	228	0.34
5/8"	0.625"	22	0.0299"	*	6.03	216	0.28
		20	0.0359"		6.03	216	0.34
		18	0.0478"		6.03	228	0.44
	0.675"	14	0.0747"	*	6.40	217	0.71
3/4"	0.750"	22	0.0299"	*	6.03	186	0.34
		20	0.0359"		6.03	186	0.41
		18	0.0478"		6.03	186	0.53
		16	0.0598"	*	6.03	169	0.66
	0.840"	13	0.0897"	*	6.40	91	1.07
7/8"	0.875"	20	0.0359"		6.03	180	0.48
		18	0.0478"		6.03	150	0.63
		14	0.0747"	*	6.03	169	0.95
1"	1.000"	20	0.0359"		6.03	137	0.55
		18	0.0478"		6.03	137	0.72
		16	0.0598"		6.03	127	0.89
	1.125"	18	0.0478"	*	6.03	175	0.82
	1.125"	14	0.0747"	*	6.03	186	1.25
1 1/4"	1.250"	20	0.0359"		6.03	124	0.69
		18	0.0478"		6.03	124	0.91
		16	0.0598"		6.03	127	1.13
		14	0.0747"	*	6.03	127	1.40
	1.315"	20	0.0359"	*	6.03	102	0.73
		18	0.0478"	*	6.03	102	0.96
		16	0.0598"	*	6.03	91	1.19
		12	0.1046"	*	6.03	61	2.01
1 1/2"	1.500"	20	0.0359"		6.03	95	0.84
		18	0.0478"		6.03	95	1.10
		16	0.0598"		6.03	91	1.37
		14	0.0747"	*	6.03	91	1.69
1 3/4"	1.750"	20	0.0359"	*	6.03	69	0.98
		18	0.0478"		6.03	69	1.29
		16	0.0598"		6.03	91	1.61
		14	0.0747"	*	6.03	61	1.99
1 7/8"	1.875"	20	0.0359"	*	6.03	95	1.05
1 7/8"	1.875"	12	0.1046"	*	6.03	50	2.94
2"	2.000"	20	0.0359"	*	6.03	67	1.12
		18	0.0478"		6.03	67	1.48
		16	0.0598"		6.03	61	1.84
		14	0.0747"	*	6.03	61	2.29
2 1/8"	2.125"	14	0.0747"	*	6.03	61	2.43
2 1/4"	2.250"	18	0.0478"	*	6.03	60	1.67
		16	0.0598"		6.03	61	2.08
		14	0.0747"	*	6.03	61	2.58
2 1/2"	2.500"	18	0.0478"		6.03	60	1.86
		16	0.0598"		6.03	60	2.32
		14	0.0747"	*	6.03	61	2.88
2 3/4"	2.750"	11	0.1196"	*	6.03	30	5.00
3"	3.000"	18	0.0478"		6.03	39	2.24
		16	0.0598"		6.03	39	2.79
		14	0.0747"	*	6.03	37	3.47
3 1/2"	3.500"	13	0.0897"	*	6.03	19	4.86
3 1/2"	3.500"	1/4"	0.2500"	*	6.03	19	12.91
4 1/2"	4.500"	1/4"	0.2500"	*	6.03	19	16.89

	Natural
	Natural galvanized
*	Made to order

Fence tubing is generally made of galvanized steel and is used in perimeter fences.

Made to order products are subject to minimum orders.
ASTM and A513 Standard.

External diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
1.000"	18	0.0478"	*	6.00	137	0.72
1.000"	16	0.0598"	*	6.00	127	0.89
1.315"	20	0.0359"	*	6.00	102	0.73
1.315"	18	0.0478"	*	6.00	91	0.96
1.500"	20	0.0359"		6.00	95	0.84
1.500"	18	0.0478"		6.00	95	1.10
1.660"	20	0.0359"	*	6.00	127	0.93
1.660"	18	0.0478"	*	6.10	127	1.22
1.900"	20	0.0359"		6.00	67	1.06
	18	0.0478"		6.00	67	1.41
	16	0.0598"	*	6.00	61	1.75
	14	0.0747"	*	6.00	61	2.17
2.375"	18	0.0478"		6.00	60	1.77
	16	0.0598"	*	6.00	37	2.20
	14	0.0747"	*	6.00	37	2.73
2.875"	18	0.0478"	*	6.00	39	2.15
	16	0.0598"	*	6.10	37	2.68
	14	0.0747"	*	6.00	37	3.32

	Natural galvanized
*	Made to order

We offer square HSS of large dimensions and thicknesses.
HSS owes its name to the acronym “Hollow Structural Section”.
In general, large steel pipe, which has various uses in construction, is called square HSS.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-500	5.000"	3/16	0.1880"	*	6.10	12	17.85
C-500	5.000"	1/4	0.2500"	*	6.10	12	23.22
C-600	6.000"	3/16	0.1880"		12.20	9	21.65
C-600	6.000"	1/4	0.2500"	*	12.20	9	28.27

	Natural
*	Made to order

Elliptical tubing has great applications in the furniture and light structure industries.

Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.

Description	A	B	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
25mm x 16mm	25.40	15.88	16	0.0598"	*	6.00	100	0.61
25mm x 16mm	25.40	15.88	14	0.0747"	*	6.00	100	0.77
30mm x 15mm	29.85	15.24	16	0.0598"	*	6.00	100	0.88
30mm x 15mm	29.85	15.24	14	0.0747"	*	6.00	100	1.02
64mm x 34mm	64.00	34.00	16	0.0598"	*	6.00	100	1.97
64mm x 34mm	64.00	34.00	14	0.0747"	*	6.00	100	2.47

*	Made to order

Oval tubes are generally used in greenhouses and manufacturing

Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.

Description	A	B	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
30mm x 15mm	30.00mm	15.00mm	20	0.0359"	*	6.00	100	0.53
			18	0.0478"	*	6.00	100	0.74
			16	0.0598"	*	6.00	100	0.91
			14	0.0747"	*	6.00	100	1.15
1.125" x 0.625"	28.58mm	15.88mm	20	0.0359"	*	6.03	186	0.55
			18	0.0478"	*	6.03	186	0.73
			14	0.0747"	*	6.03	100	1.19
1.610" x 0.600"	40.90mm	15.34mm	20	0.0359"	*	6.00	250	0.72
			18	0.0478"	*	6.00	250	0.96
			16	0.0598"	*	6.00	250	1.20
			14	0.0747"	*	6.00	250	1.43
65mm x 35mm	65.00mm	35.00mm	16	0.0598"	*	6.33	50	2.07
70mm x 42mm	70.00mm	42.00mm	20	0.0359"	*	6.00	50	1.37
			18	0.0478"	*	6.00	50	1.82
			16	0.0598"	*	6.00	50	2.30
			14	0.0747"	*	6.00	50	2.82
			12	0.1046"	*	6.00	50	4.01
74mm x 10mm	74.00mm	10.00mm	16	0.0598"	*	6.03	186	1.92

*	Made to order

In staves we offer two different lengths and widths

Made to order products subject to minimum orders
Available in cold rolled steel with red primer and galvanized with green primer

Description	Gauge	Stock	Thickness	Length (m)	Pieces / bundle	Kg / m
170	20		0.0359"	6.00	60	1.54
171	20		0.0359"	6.00	120	0.86

	Red paint
	Green galvanized
*	Made to order

Deck 148 is also known as “big box” deck because of its square shaped die cut, which is 3/4 ” wide

Bundles include 50 pieces each.
Made to order products are subject to minimum orders.
Length and width dimension are based on the sheet before being pressed.

Descripción Description	Ancho Width	Largo Length	Calibre Gauge	Espesor Thickness	Inventario Stock	Ancho (m) Width (m)	Largo (m) Length m.(m)	Kg / m
148-LC	3'	10'	22'	0.0299	*	0.76	3.05	5.45
148-LC	4'	6'	22	0.0299		1.02	1.83	7.25
	4'	6.5'	22	0.0299		1.02	1.98	7.25
	4'	8'	20	0.0359	*	1.02	2.44	8.73
	4'	8'	22	0.0299		1.02	2.44	7.25

	Green galvanized
*	Made to order

LC- Moldura Largo (Continuo)

Our steel shapes (profiles) are available on steel gauges 20 to 14.

Shape	Description	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
	1400	18	0.0478"		6.00	72	1.24
	1500	16	0.0598"		6.00	30	2.45
	1500	14	0.0747"		6.00	32	3.06
	160	20	0.0359"	*	6.00	90	1.08
	160	18	0.0478"		6.00	90	1.47

	Natural galvanized
	Red paint
	Green galvanized
*	Made to order

Our steel shapes (profiles) are available on steel gauges 20 to 14.

Shape	Description	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
	M-221	20	0.0359"	*	6.00	72	1.46
	M-225	20	0.0359"		5.50	96	1.03
	M-225	18	0.0478"		5.50	96	1.41
	M-300	20	0.0359"		5.50	96	1.17
	M-525	20	0.0359"		5.50	42	1.56
	M-600	20	0.0359"		5.50	42	1.69

	Red paint
	Green galvanized
*	Made to order

We offer special shapes to assemble steel doors.

Shape	Description	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
	154	18	0.0478"		6.00	450	0.25
	M-221	20	0.0359"	*	6.00	72	1.46
	M-225	20	0.0359"		5.50	96	1.03
	M-225	18	0.0478"		5.50	96	1.41
	M-300	20	0.0359"		5.50	96	1.17
	M-525	20	0.0359"		5.50	42	1.56
	M-600	20	0.0359"		5.50	42	1.69
	126	20	0.0359"		6.00	48	1.27
	126	18	0.0478"		6.00	48	1.72
	P-100	20	0.0359"		6.00	96	1.01
	P-100	18	0.0478"		6.00	96	1.36
	P-150	20	0.0359"		6.00	70	1.19
	P-150	18	0.0478"		6.00	70	1.61
	P-200	20	0.0359"		6.00	72	1.37
	P-200	18	0.0478"		6.00	72	1.86
	P-250	20	0.0359"		6.00	42	1.56
	P-250	18	0.0478"		6.00	42	2.09
	P-300	20	0.0359"		6.00	54	1.73
	P-300	18	0.0478"		6.00	54	2.32
	P-400	20	0.0359"		6.00	48	2.09
	P-400	18	0.0478"		6.00	48	2.82
	K-100	18	0.0478"	*	6.00	96	1.58
	K-150	20	0.0359"	*	6.00	54	1.34
	K-150	18	0.0478"		6.00	54	1.83
	K-200	20	0.0359"	*	6.00	48	1.52
	K-300	20	0.0359"		6.00	45	1.88
	K-300	18	0.0478"		6.00	45	2.57

	Natural galvanized
	Red paint
	Green galvanized
*	Made to order

We offer special shapes to assemble steel windows.

Shape	Description	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
	101	20	0.0359"		6.00	100	0.91
	101	18	0.0478"		6.00	100	1.22
	103	20	0.0359"		6.00	80	1.08
	103	18	0.0478"		6.00	80	1.47
	106	20	0.0359"	*	6.00	80	1.08
	106	18	0.0478"		6.00	80	1.47
	121	20	0.0359"		6.00	96	1.00
	121	18	0.0478"	*	6.00	96	1.36
	122	20	0.0359"		6.00	80	1.00
	122	18	0.0478"	*	6.00	80	1.36
	123	20	0.0359"		6.00	80	1.07
	124	18	0.0478"		6.00	100	0.68
	127	18	0.0478"		6.00	60	1.91
	131	20	0.0359"		6.00 6.00	160	0.64
	159	18	0.0478"		6.00	54	1.81

	Red paint
	Green galvanized
*	Made to order

We offer rectangular tubing from 0.394 “x 0.591″, made of 0.0177 ” steel sheets.
Thin-walled Rectangular shapes generally have industrial and blacksmithing uses.
Regularly, rectangular profiles are made of thin cold rolled steel sheets.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
R-100	1.00"x 0.50"	20	0.0359"		6.00	120	0.52
		18	0.0478"		6.00	120	0.68
		16	0.0598"	*	6.00	120	0.84
		14	0.0747"	*	6.00	120	1.02
R-125	1.25"x 0.75"	20	0.0359"		6.00	99	0.70
		18	0.0478"		6.00	99	0.92
		16	0.0598"	*	6.00	99	1.14
		14	0.0747"	*	6.00	99	1.40
R-155	1.50"x 0.50"	20	0.0359"	*	6.03	98	0.70
		18	0.0478"		6.03	98	0.92
		14	0.0747"	*	6.03	98	1.40
R-150	1.50"x 0.75"	16	0.0598"	*	6.00	98	1.29
		14	0.0747"	*	6.00	98	1.59
		11	0.1196"	*	6.00	98	2.25
R-151	1.50"x 1.00"	20	0.0359"	*	6.00	84	0.88
		18	0.0478"		6.00	84	1.16
		16	0.0598"	*	6.00	100	1.44
		14	0.0747"	*	6.00	84	1.78
		11	0.1196"	*	6.00	63	2.55
R-175	1.75"x 0.75"	20	0.0359"		6.00	84	0.88
R-175	1.75"x 0.75"	18	0.0478"		6.00	84	1.16
R-200	2.00"x 1.00"	20	0.0359"		6.00	50	1.06
		18	0.0478"		6.00	50	1.40
		16	0.0598"		6.00	50	1.74
		14	0.0747"		6.00	50	2.15
		12	0.1046"	*	6.00	50	2.95
		11	0.1196"	*	6.00	50	3.15
R-225	2.25"x 0.75"	20	0.0359"		6.00	55	1.06
R-225	2.25"x 0.75"	18	0.0478"		6.00	55	1.40
R-249	2.50"x 1.25"	20	0.0359"		6.00	54	1.34
		18	0.0478"		6.00	54	1.77
		16	0.0598"	*	6.00	54	2.20
		14	0.0747"	*	6.00	54	2.72
		12	0.1046"	*	6.00	54	3.75
R-250	2.50"x 1.50"	18	0.0478"	*	6.00	48	1.89
		14	0.0747"		6.00	48	2.91
		12	0.1046"	*	6.00	40	4.01
		11	0.1196"	*	6.00	40	4.36
R-275	2.75"x 1.00"	12	0.1046"	*	6.00	40	3.75
R-275	2.75"x 1.00"	11	0.1196"	*	6.00	40	4.06
R-375	3.00"x 0.75"	14	0.0747"	*	6.00	48	2.72
R-301	3.00"x 1.00"	18	0.0478"	*	6.00	48	1.89
		16	0.0598"	*	6.00	48	2.35
		14	0.0747"	*	6.00	48	2.91
		11	0.1196"	*	6.00	48	4.36
		10	0.1345"	*	6.00	48	4.84
R-300	3.00"x 1.50"	22	0.0299"		6.00	49	1.34
		20	0.0359"		6.00	49	1.61
		18	0.0478"		6.00	49	2.13
		16	0.0598"	*	6.00	49	2.65
		14	0.0747"		6.00	49	3.29
R-302	3.00"x 2.00"	16	0.0598"	*	6.00	28	2.95
		14	0.0747"		6.00	35	3.67
		12	0.1046"	*	6.00	28	5.07
		11	0.1196"		6.00	28	5.57
		10	0.1345"		6.00	28	6.20
		9	0.1495"	*	6.00	28	6.82
		3/16	0.1880"		6.10	28	8.34
		1/4	0.2500"	*	6.10	28	10.57
R-400	4.00"x 1.50"	20	0.0359"		6.00	35	1.97
		18	0.0478"		6.00	35	2.61
		16	0.0598"	*	6.00	35	3.26
		14	0.0747"		6.00	35	4.04
R-402	4.00"x 2.00"	14	0.0747"		6.00	35	4.42
		11	0.1196"		6.00	20	6.78
		10	0.1345"	*	6.00	20	7.56
		9	0.1495"		6.00	20	8.33
		3/16	0.1880"		6.10	20	10.24
		1/4	0.2500"	*	6.10	15	13.10

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

We manufacture rectangular HSS in large dimensions and thicknesses.
Rectangular HSS gets its name from the acronym “Hollow Structural Section”
Generally, rectangular HSS is the large steel pipe used in construction.

Descripción Description	Diámetro Diameter	Calibre Gauge	Espesor Thickness	Inventario Stock	Longitud (m) Length (m)	Piezas / paquete Pieces / bundle	Kg / m
R-604	6.00"x 4.00"	11	0.1196"		6.00	12	11.63
		9	0.1495"		6.10	12	14.38
		3/16	0.1880"	*	6.10	12	17.85
		1/4	0.2500"		6.10	12	23.22
R-804	8.00"x 4.00"	3/16	0.1880"	*	12.20	9	21.65
R-804	8.00"x 4.00"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

Ofrecemos PTR cuadrados en una gran variedad de dimensiones y espesores.
El PTR (Perfil Tubular Rectangular) debe su nombre a que cuenta con ángulos rectos de 90°.
Regularmente, el PTR cuadrado se fabrica con lámina rolada en caliente por lo que cuenta con una mayor solidez para usos estructurales.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-100	1.000"	20	0.0359"		6.00	100	0.70
		18	0.0478"		6.00	100	0.92
		16	0.0598"		6.00	100	1.14
		14	0.0747"		6.00	100	1.40
		13	0.0897"	*	6.00	100	1.65
		12	0.1046"		6.00	100	1.90
		11	0.1196"		6.00	80/p>	1.94
		10	0.1345"		6.00	80/p>	2.12
C-125	1.250"	20	0.0359"		6.00	81	0.88
		18	0.0478"		6.00	81	1.16
		16	0.0598"		6.00	81	1.44
		14	0.0747"		6.00	81	1.78
		12	0.1046"		6.00	63	2.42
		11	0.1196"	*	6.00	63	2.55
		10	0.1345"	*	6.00	63	2.80
C-150	1.500"	20	0.0359"		6.00	49	1.06
		18	0.0478"		6.00	49	1.40
		16	0.0598"		6.00	49	1.74
		14	0.0747"		6.00	49	2.15
		12	0.1046"		6.00	49	2.95
		11	0.1196"		6.00	49	3.15
		10	0.1345"		6.00	49	3.48
		9	0.1495"	*	6.00	49	3.79
C-175	1.750"	16	0.0598"	*	6.00	60	2.05
		14	0.0747"		6.00	60	2.53
		11	0.1196"	*	6.00	60	3.76
C-200	2.000"	20	0.0359"	*	6.00	50	1.43
		18	0.0478"		6.00	50	1.89
		16	0.0598"		6.00	50	2.35
		14	0.0747"		6.00	50	2.91
		12	0.1046"		6.00	40	4.01
		11	0.1196"		6.00	40	4.36
		10	0.1345"		6.00	40	4.84
		9	0.1495"		6.10	40	5.31
		3/16	0.1880"		6.10	40	6.43
		1/4	0.2500"		6.10	40	8.04
C-225	2.250"	16	0.0598"	*	6.00	50	2.65
C-225	2.250"	14	0.0747"	*	6.00	50	3.29
C-250	2.500"	16	0.0598"	*	6.00	36	2.95
		14	0.0747"		6.00	36	3.67
		13	0.0897"	*	6.00	36	4.38
		12	0.1046"	*	6.00	27	5.07
		11	0.1196"		6.00	27	5.57
		10	0.1345"		6.00	27	6.20
		9	0.1495"	*	6.00	27	6.82
		3/16	0.1880"		6.10	27	8.34
		1/4	0.2500"	*	6.10	27	10.57
C-300	3.000"	14	0.0747"		6.00	35	4.42
		13	0.0897"	*	6.00	35	5.28
		12	0.1046"	*	6.00	21	6.13
		11	0.1196"		6.00	21	6.78
		10	0.1345"	*	6.00	21	7.56
		9	0.1495"		6.00	21	8.33
		3/16	0.1880"		6.10	21	10.24
		1/4	0.2500"		6.10	21	13.10
C-350	3.500"	14	0.0747"	*	6.00	18	5.18
		11	0.1196"		6.00	18	7.99
		9	0.1495"	*	6.00	18	9.85
		3/16	0.1880"		6.10	18	12.14
		1/4	0.2500"		6.10	18	15.63
C-400	4.000"	14	0.0747"		6.00	20	5.93
		11	0.1196"		6.00	15	9.21
		10	0.1345"	*	6.00	15	10.29
		9	0.1495"		6.00	15	11.36
		3/16	0.1880"		6.10	15	14.04
		1/4	0.2500"		6.10	15	18.16
C-450	4.500"	11	0.1196"	*	6.00	12	10.42
		3/16	0.1880"	*	6.10	12	15.94
		1/4	0.2500"	*	6.10	12	20.69
C-500	5.000"	3/16	0.1880"	*	6.10	12	17.85
C-500	5.000"	1/4	0.2500"	*	6.10	12	23.22
C-600	6.000"	3/16	0.1880"		12.20	9	21.65
C-600	6.000"	1/4	0.2500"	*	12.20	9	28.27

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

We offer square tubes from 0.394″ up to 6″, with wall thicknesses from 0.0177″ to 0.250″.
Thin-walled mechanical square tubing generally has industrial and blacksmithing uses.
Regularly, mechanical square tubes are made of thin cold rolled sheets and come in dimensions of 2.5″ or less.

Description	Diameter	Gauge	Thickness	Stock	Length (m)	Pieces / bundle	Kg / m
C-050	0.500"	22	0.0299"	*	6.00	231	0.28
		20	0.0359"		6.00	231	0.34
		18	0.0478"		6.00	231	0.44
		16	0.0598"	*	6.00	182	0.53
C-062	0.625"	20	0.0359"	*	6.00	252	0.43
		18	0.0478"	*	6.00	252	0.56
		16	0.0598"	*	6.00	252	0.68
C-075	0.750"	22	0.0299"	*	6.00	120	0.44
		20	0.0359"		6.00	120	0.52
		18	0.0478"		6.00	120	0.68
		16	0.0598"	*	6.00	120	0.84
		14	0.0747"		6.00	120	1.02
C-087	0.875"	20	0.0359"	*	6.00	112	0.61
C-087	0.875"	14	0.0747"	*	6.00	112	1.21
C-100	1.000"	20	0.0359"		6.00	100	0.70
		18	0.0478"		6.00	100	0.92
		16	0.0598"		6.00	100	1.14
		14	0.0747"		6.00	100	1.40
		13	0.0897"	*	6.00	100	1.65
		12	0.1046"		6.00	100	1.90
		11	0.1196"		6.00	80	1.94
		10	0.1345"		6.00	80	2.12
C-125	1.250"	20	0.0359"		6.00	81	0.88
		18	0.0478"		6.00	81	1.16
		16	0.0598"		6.00	81	1.44
		14	0.0747"		6.00	81	1.78
		12	0.1046"		6.00	63	2.42
		11	0.1196"	*	6.00	63	2.55
		10	0.1345"	*	6.00	63	2.80
C-150	1.500"	20	0.0359"		6.00	49	1.06
		18	0.0478"		6.00	49	1.40
		16	0.0598"		6.00	49	1.74
		14	0.0747"		6.00	49	2.15
		12	0.1046"		6.00	49	2.95
		11	0.1196"		6.00	49	3.15
		10	0.1345"		6.00	49	3.48
		9	0.1495"	*	6.00	49	3.79
C-175	1.750"	16	0.0598"	*	6.00	60	2.05
		14	0.0747"		6.00	60	2.53
		11	0.1196"	*	6.00	60	3.76
C-200	2.000"	20	0.0359"	*	6.00	50	1.43
		18	0.0478"		6.00	50	1.89
		16	0.0598"		6.00	50	2.35
		14	0.0747"		6.00	50	2.91
		12	0.1046"		6.00	40	4.01
		11	0.1196"		6.00	40	4.36
		10	0.1345"		6.00	40	4.84
		9	0.1495"		6.10	40	5.31
		3/16	0.1880"		6.10	40	6.43
		1/4	0.2500"		6.10	40	8.04
C-225	2.250"	16	0.0598"	*	6.00	50	2.65
C-225	2.250"	14	0.0747"	*	6.00	50	3.29
C-250	2.500"	16	0.0598"	*	6.00	36	2.95
		14	0.0747"		6.00	36	3.67
		13	0.0897"	*	6.00	36	4.38
		12	0.1046"	*	6.00	27	5.07
		11	0.1196"		6.00	27	5.57
		10	0.1345"		6.00	27	6.20
		9	0.1495"	*	6.00	27	6.82
		3/16	0.1880"		6.10	27	8.34
		1/4	0.2500"	*	6.10	27	10.57

	Natural galvaized
	Red paint
	Natural
	Green galvanized
*	Made to order

The poultry purlin is designed to facilitate the cleaning of chicken coop and spaces that house birds or animals.

Available on galvanized steel.
Made to order products are subject to minimum orders.
Ask your sales representative for different lenghts, thicknesses and finishes.

A	B	C	D	Gauge	Thickness	Stock	Kg / m
7”	2”	0.787"	0.787"	14	0.0747	*	3.95
6”	2”	0.787"	0.787"	14	0.0747	*	3.57
5”	2”	0.787"	0.787"	14	0.0747	*	3.18
4”	2”	0.787"	0.787"	14	0.0747	*	2.79

*	Made to order

The design of the Z purlin allows its transportation to be more efficient and has the same load resistance as the C purlin.

Made to order products are subject to minimum orders.
4” to 14” purlins are produced in lengths from 3 to 13 meters.
3” purlins are produced in lengths from 3 to 8 meters.

AxBxC	Gauge	Thickness	Stock	Standard length (m)	Pieces / bundle	Kg / m
14"x3.50"x1.00"	10	0.1345	*	14.00	12	15.00
14"x3.50"x1.00"	12	0.1046	*	14.00	12	12.10
14"x3.50"x1.00"	14	0.0747	*	14.00	12	8.70
12"x3.50"x1.00"	10	0.1345	*	12.00	12	13.60
12"x3.50"x1.00"	12	0.1046	*	12.00	12	10.99
12"x3.50"x1.00"	14	0.0747	*	12.00	12	7.87
10"x2.75"x0.75"	10	0.1345	*	10.00	12	11.20
10"x2.75"x0.75"	12	0.1046	*	10.00	12	9.06
10"x2.75"x0.75"	14	0.0747	*	10.00	12	6.49
10"x2.75"x0.75"	16	0.0598	*	10.00	12	5.20
9"x2.75"x0.75"	10	0.1345	*	9.00	12	10.60
9"x2.75"x0.75"	12	0.1046	*	9.00	12	8.50
9"x2.75"x0.75"	14	0.0747	*	9.00	12	6.10
9"x2.75"x0.75"	16	0.0598	*	9.00	12	4.90
8"x2.75"x0.75"	10	0.1345	*	8.00	24	9.90
8"x2.75"x0.75"	12	0.1046	*	8.00	24	7.96
8"x2.75"x0.75"	14	0.0747	*	8.00	24	5.70
8"x2.75"x0.75"	16	0.0598	*	8.00	24	4.50
7"x2.75"x0.75"	10	0.1345	*	7.00	24	9.20
7"x2.75"x0.75"	12	0.1046	*	7.00	24	7.40
7"x2.75"x0.75"	14	0.0747	*	7.00	24	5.30
7"x2.75"x0.75"	16	0.0598	*	7.00	24	4.20
6"x2.00"x0.75"	10	0.1345	*	6.00	48	7.30
6"x2.00"x0.75"	12	0.1046	*	6.00	48	5.86
6"x2.00"x0.75"	14	0.0747	*	6.00	48	4.19
6"x2.00"x0.75"	16	0.0598	*	6.00	48	3.30
5"x2.00"x0.75"	10	0.1345	*	6.00	48	6.60
5"x2.00"x0.75"	12	0.1046	*	6.00	48	5.30
5"x2.00"x0.75"	14	0.0747	*	6.00	48	3.80
5"x2.00"x0.75"	16	0.0598	*	6.00	48	3.00
4"x2.00"x0.75"	10	0.1345	*	6.00	48	5.90
4"x2.00"x0.75"	12	0.1046	*	6.00	48	4.80
4"x2.00"x0.75"	14	0.0747	*	6.00	48	3.40
4"x2.00"x0.75"	16	0.0598	*	6.00	48	2.71
4"x1.50"x0.75"	10	0.1345	*	6.00	48	5.20
4"x1.50"x0.75"	12	0.1046	*	6.00	48	4.20
4"x1.50"x0.75"	14	0.0747	*	6.00	48	2.96
4"x1.50"x0.75"	16	0.0598	*	6.00	48	2.40

*	Made to order

The C purlin is used in the construction segment as it offers great structural strength.

Contact your sales consultant to find out the feasibility in different sizes, lengths and finishes.

AxBxC	Gauge	Thickness	Stock	Standard length (m)	Pieces / bundle	Kg / m
14"x3.50"x1.00"	10	0.1345	*	14.00	12	15.00
14"x3.50"x1.00"	12	0.1046	*	14.00	12	12.10
14"x3.50"x1.00"	14	0.0747	*	14.00	12	8.70
12"x3.50"x1.00"	10	0.1345	*	12.00	12	13.60
12"x3.50"x1.00"	12	0.1046		12.00	12	10.99
12"x3.50"x1.00"	14	0.0747		12.00	12	7.87
10"x2.75"x0.75"	12	0.1046		10.00	12	9.06
10"x2.75"x0.75"	14	0.0747		10.00	12	6.49
10"x2.75"x0.75"	16	0.0598	*	10.00	12	5.20
9"x2.75"x0.75"	10	0.1345	*	9.00	12	10.60
9"x2.75"x0.75"	16	0.0598	*	9.00	12	4.90
8"x2.75"x0.75"	10	0.1345	*	8.00	24	9.90
8"x2.75"x0.75"	12	0.1046		8.00	24	7.96
8"x2.75"x0.75"	14	0.0747		8.00	24	5.70
8"x2.75"x0.75"	14	0.0747		6.00	24	5.70
8"x2.75"x0.75"	16	0.0598	*	8.00	24	4.50
7"x2.75"x0.75"	10	0.1345	*	7.00	24	9.20
7"x2.75"x0.75"	14	0.0747	*	7.00	24	5.30
7"x2.75"x0.75	16	0.0598	*	7.00	24	4.20
6"x2.00"x0.75"	10	0.1345	*	6.00	48	7.30
6"x2.00"x0.75"	12	0.1046		6.00	48	5.86
6"x2.00"x0.75"	14	0.0747		6.00	48	4.19
6"x2.00"x0.75"	16	0.0598	*	6.00	48	3.30
5"x2.00"x0.75"	10	0.1345	*	6.00	48	6.60
5"x2.00"x0.75"	12	0.1046	*	6.00	48	5.30
5"x2.00"x0.75"	14	0.0747		6.00	48	3.80
5"x2.00"x0.75"	14	0.0747		5.00	48	3.80
5"x2.00"x0.75"	16	0.0598	*	6.00	48	3.00
4"x2.00"x0.75"	10	0.1345	*	6.00	48	5.90
4"x2.00"x0.75"	12	0.1046	*	6.00	48	4.80
4"x2.00"x0.75"	14	0.0747		6.00	48	3.40
4"x2.00"x0.75"	14	0.0747		5.00	48	3.40
4"x2.00"x0.75"	14	0.0747		4.00	48	3.40
4"x2.00"x0.75"	16	0.0598		6.00	48	2.71
4"x1.50"x0.75"	10	0.1345	*	6.00	48	5.20
4"x1.50"x0.75"	12	0.1046	*	6.00	48	4.20
4"x1.50"x0.75"	14	0.0747		6.00	48	2.96
4"x1.50"x0.75"	16	0.0598	*	6.00	48	2.40
3"x1.50"x0.75"	14	0.0747		6.00	60	2.61
3"x1.50"x0.75"	16	0.0598		6.00	60	2.08

	Red paint
	Natural galvanized
	HSLA Red paint
*	Made to order
